Request for Technical Drawing / Extra Info for
"RELAY FUEL PUMP – 02263601"

Enter the OEM, ODM or major distributors codes to search for your product

02263601

RELAY FUEL PUMP – 02263601

15 PIN

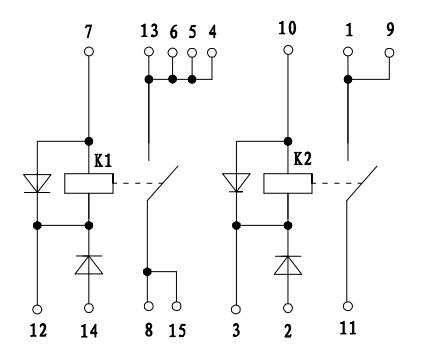

COIL DATA

Coil Resistance: 80 Ω ± 10%

Num. Terminals: 15

Operate Voltage: ≤ 7,8V

Rated Voltage: 12V DC

Release Voltage: ≥ 1,5V

information

You are asking for information for the product RELAY FUEL PUMP – 02263601.
