O.1R.205.000.D.A1

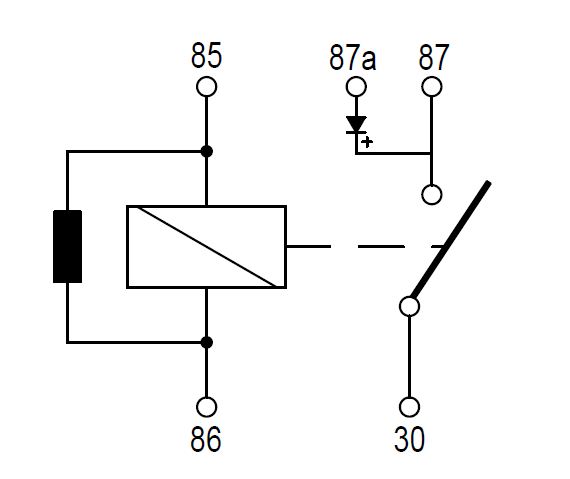

Relay N.O. 5P 40A with Resistor and with Diode in 87a pin – O.1R.205.000.D.A1

Home / Mini Relays up to 40A / Mini Relay N.O. & C.O. Standard / Relay N.O. 5P 40A with Resistor and with Diode in 87a pin – O.1R.205.000.D.A1

COIL DATA

Coil Resistance: 85Ω ± 10%

Rated Voltage: 12V DC

Release Voltage: ≥1,5VDC

Parallel resistor: 680Ω ± 10%

Suppressor: Resistor

Operate Voltage: ≤7,8VDC

CONTACTS DATA

Rated Load: 40A 12VDC

Contacts Arrangement: SPST/Normally Open

Electrical Lifestime: 100.000 cycles 2"ON / 2"OFF @ Rated Load

Insulation Resistance: 100MΩ @ 500VDC between contacts

Mechanical Lifetime: 1.000.000 cycles

OTHER DATA

Operating Temperature: (-40 ÷ +85)°C

Test Temperature: (23±2)°C

MATERIALS

Baseplate: PA66 GF25

Fixed Contact: AgSnO2In2O3

Housing: PA66 GF25

ADDITIONAL DATA

Testing Voltage: 14VDC
