ZDCB-122ZSN

Automotive relay 10P 12V 25A NO/NC – ZDCB-122ZSN

Home / PCB Relays / Automotive PCB Relays / Automotive relay 10P 12V 25A NO/NC – ZDCB-122ZSN

COIL DATA

Release Voltage: 1,2V DC @ 23°C

Operate Voltage: 6,5V DC @ 23°C

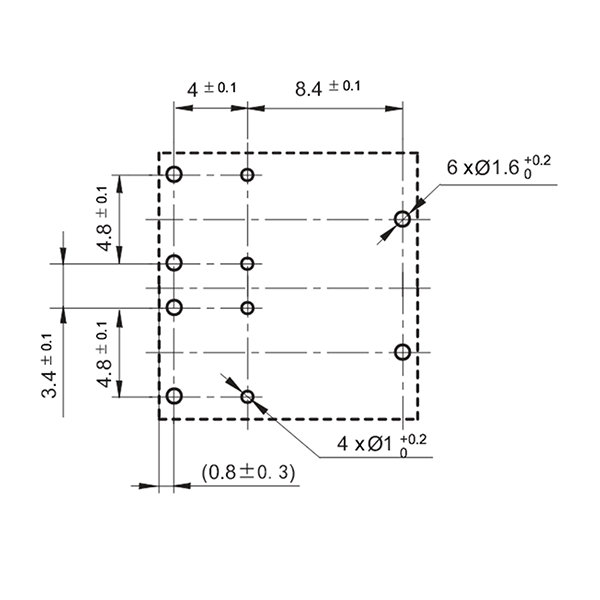

Num. Terminals: 10P

Rated Voltage: 12V DC

Coil Power: 0.8W

Coil Resistance: 180Ω

CONTACTS DATA

Contact Resistance: 100mΩ (1A 6VDC)

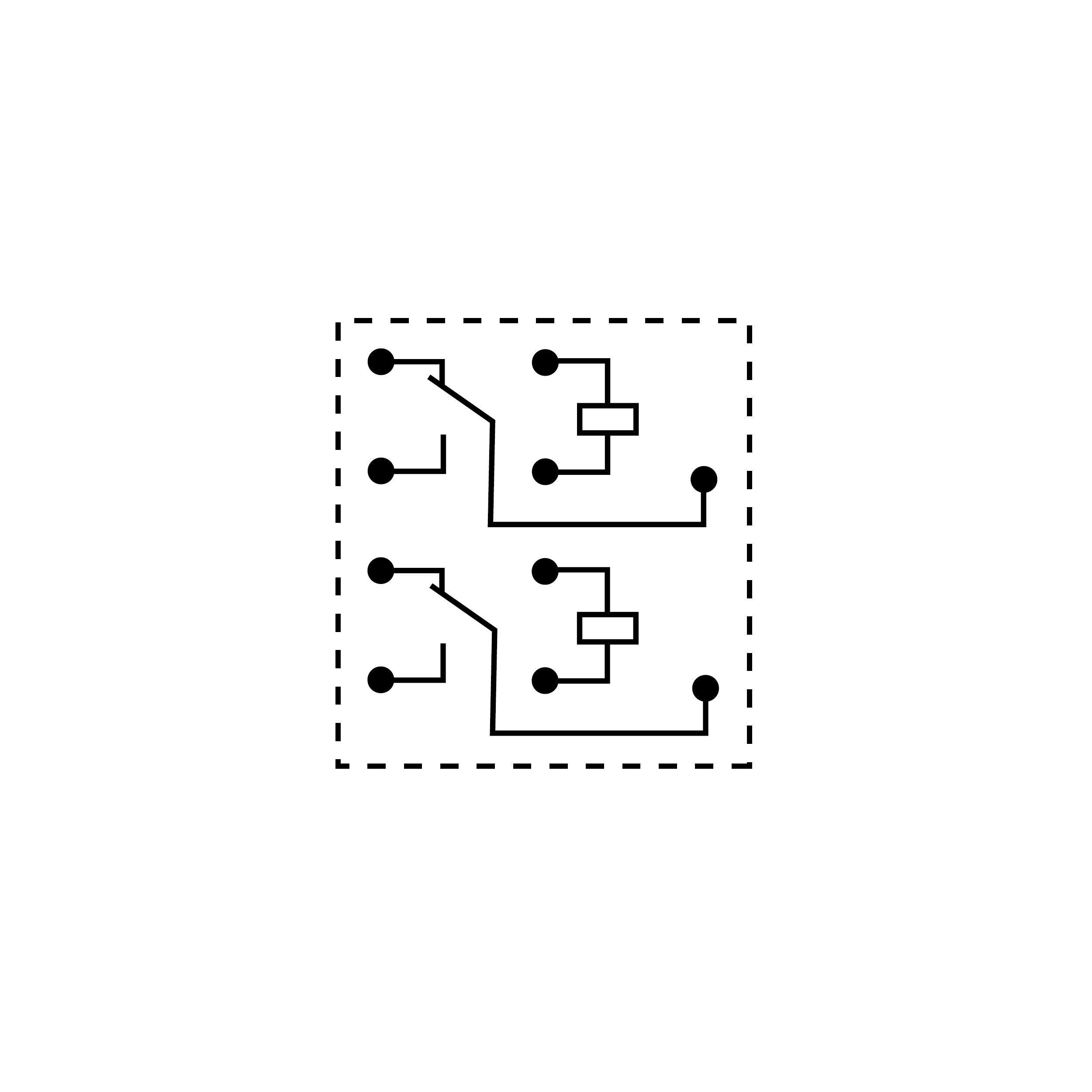

Contacts Arrangement: 2Z (CO/DPDT)

Electrical Lifestime: 1x105OPS(10 OPS/min)

Insulation Resistance: 100MΩ 500VDC

Max Continuous Current: 25A

Max Switching Current: 30A

Mechanical Lifetime: 1x107OPS(300 OPS/min)

Release Time: 5ms max

Rated Current On The Contacts: 25A 16VDC

Operate Time: 10ms max

OTHER DATA

Dielectric Strength Between Open Contacts: 500VAC 1min

Dielettric Strenght: 500VAC 1min

Operating Temperature: -40℃ to 105℃

MATERIALS

Terminals: Silver Alloy

ADDITIONAL DATA

Cross Reference: HFKA/012-2ZSPT

Vibration Test (ISO 16750-3): 10HZ to 55HZ 1.5mm Double amplitude

PACKAGING

MOQ: 2000

Anchor | Bracket: NO

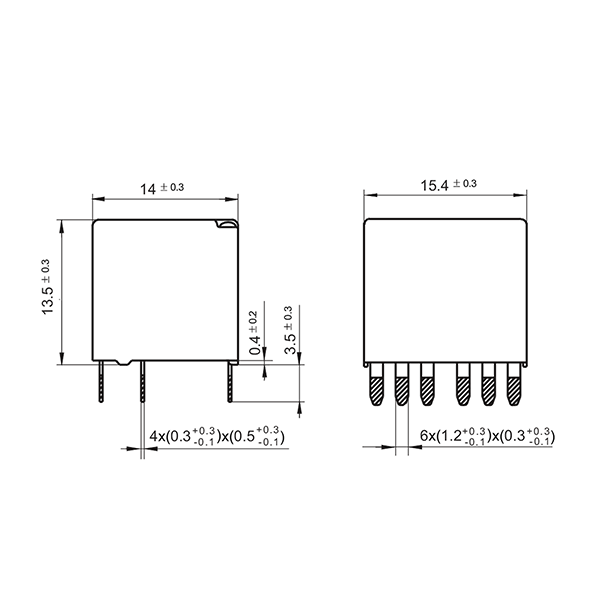

WEIGHT

Single Net Weight: ≈8g
