Automotive relay 4P 12V 70A pcb, with two 9.2mm terminal – ZDCGP-12HSb

Home / PCB Relays / Automotive PCB Relays / Automotive relay 4P 12V 70A pcb, with two 9.2mm terminal – ZDCGP-12HSb

COIL DATA

Release Voltage: 1,2V DC @ 23°C

Operate Voltage: 7,2V DC @ 23°C

Num. Terminals: 4P

Rated Voltage: 12V DC

Coil Power: 1.6W

Coil Resistance: 90Ω

CONTACTS DATA

Contact Resistance: 100mΩ(1A 6VDC)

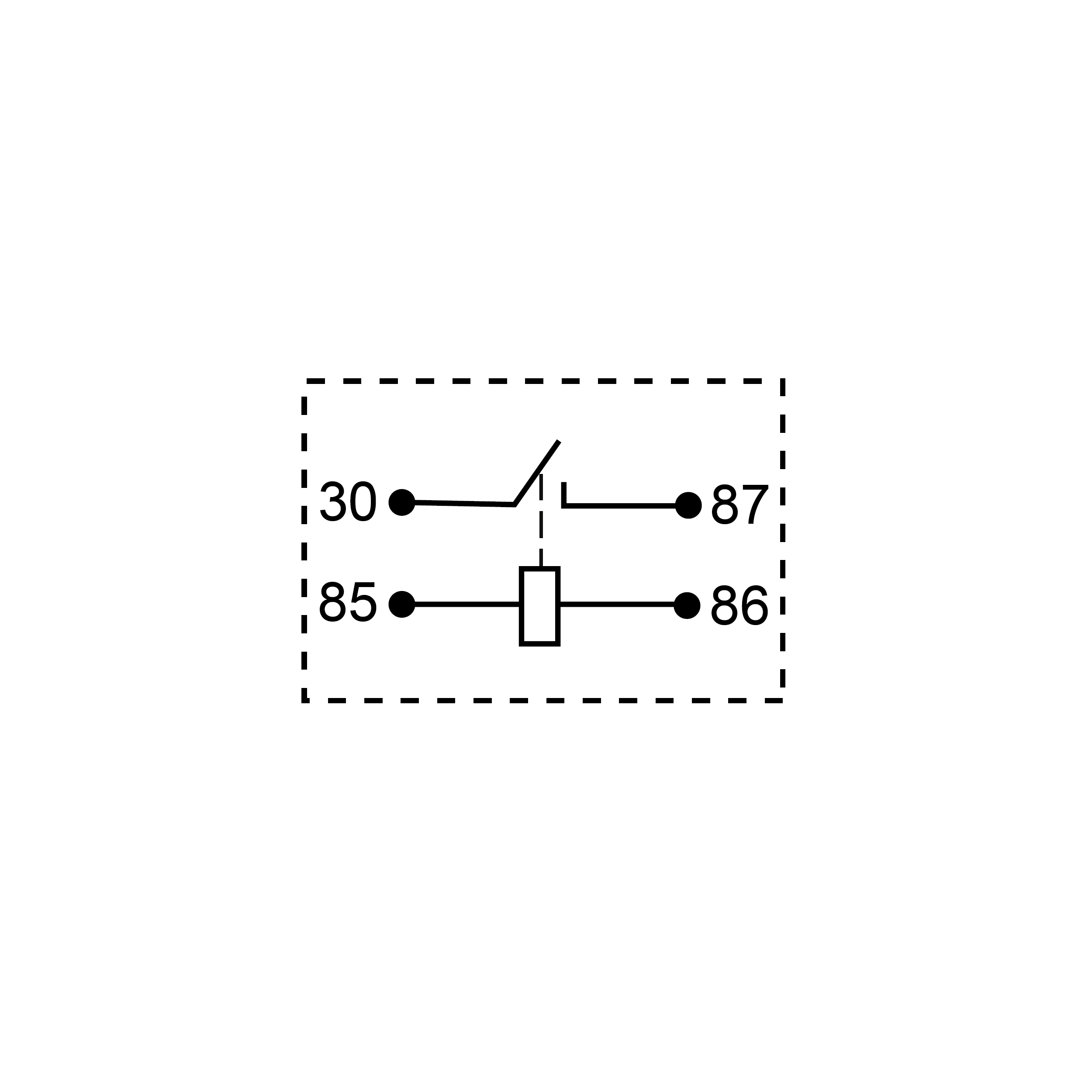

Contacts Arrangement: 1H (NO/SPST)

Electrical Lifestime: 1x105OPS(20 OPS/min)

Insulation Resistance: 100MΩ (500VDC)

Max Continuous Current: 70A

Max Switching Current: 70A

Mechanical Lifetime: 1X106OPS (30OPS/min)

Release Time: 10ms

Rated Current On The Contacts: NO 70A 14VDC

Operate Time: 10ms

OTHER DATA

Dielectric Strength Between Open Contacts: 500VAC 1 min.

Dielettric Strenght: 500VAC 1 min.

Operating Temperature: -40°C to 125°C

MATERIALS

Terminals: Silver Alloy

ADDITIONAL DATA

Cross Reference: HFV16-P/12-HST

Vibration Test (ISO 16750-3): 5HZ to 22.3HZ 10mm Double amplitude 22.3Hz~500Hz,98 m/s2

PACKAGING

MOQ: 2000

Anchor | Bracket: NO

WEIGHT

Single Net Weight: 28,4
