ZDCB-12ZSN
COIL DATA
Release Voltage: 1,2V DC @ 23°C
Operate Voltage: 6,5V DC @ 23°C
Num. Terminals: 5P
Rated Voltage: 12V DC
Coil Power: 0.8W
Coil Resistance: 180Ω
CONTACTS DATA
Contact Resistance: 100mΩ (1A 6VDC)

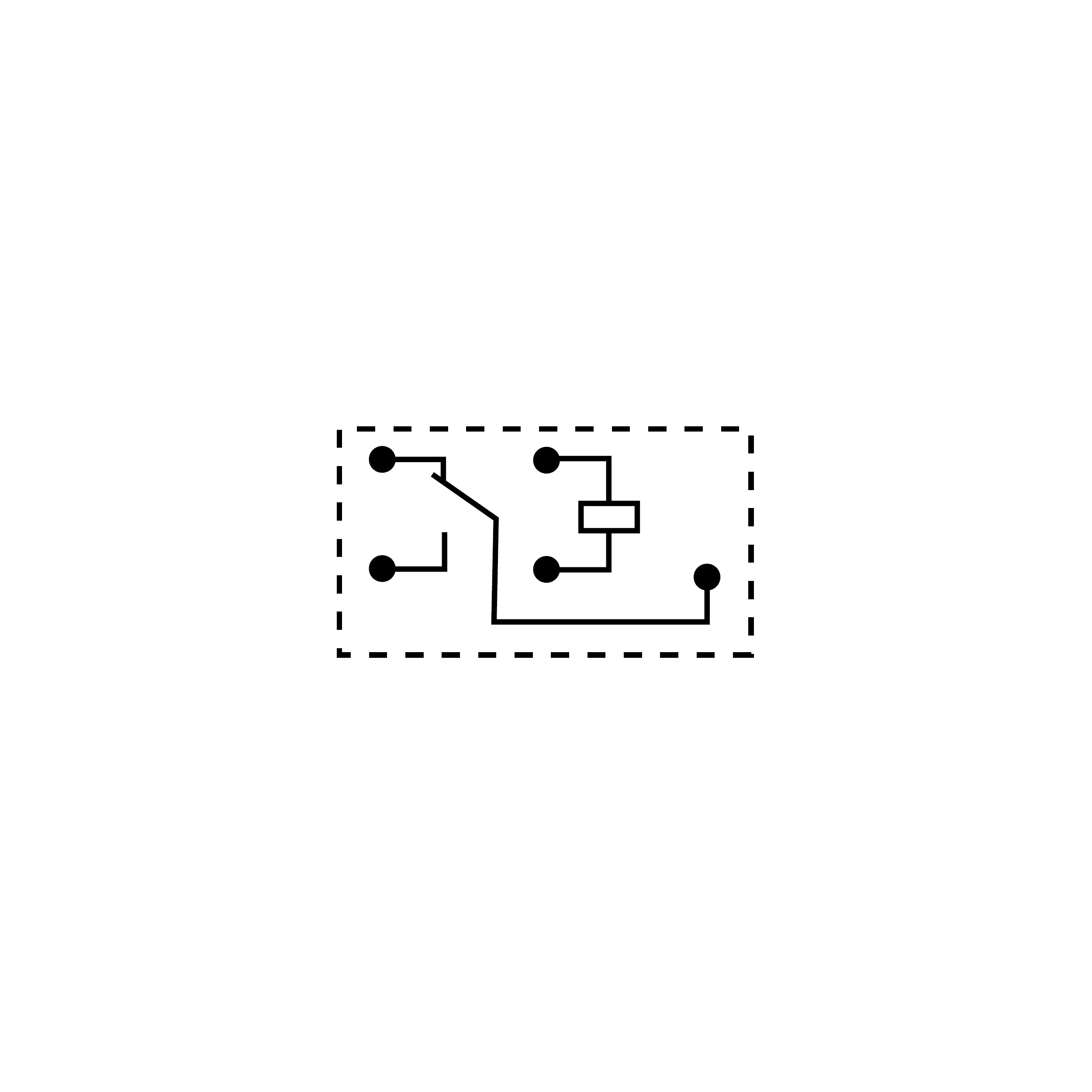

Contacts Arrangement: 1Z (CO/SPDT)
Electrical Lifestime: 1x105OPS(10 OPS/min)
Insulation Resistance: 100MΩ 500VDC
Max Continuous Current: 25A
Max Switching Current: 30A
Mechanical Lifetime: 1x107OPS(300 OPS/min)
Release Time: 5ms max
Rated Current On The Contacts: 25A 16VDC
Operate Time: 10ms max
OTHER DATA
Dielectric Strength Between Open Contacts: 500VAC 1min
Dielettric Strenght: 500VAC 1min
Operating Temperature: -40℃ to 105℃
MATERIALS
Terminals: Silver Alloy
ADDITIONAL DATA
Cross Reference: HFKA/012-1ZSPT
Vibration Test (ISO 16750-3): 10HZ to 55HZ 1.5mm Double amplitude
PACKAGING
MOQ: 2000
Anchor | Bracket: NO
WEIGHT
Single Net Weight: ≈4g
