ZDCG-06ZSbD
COIL DATA
Coil Power: 1.6W
Coil Resistance: 22,5Ω
Num. Terminals: 5P
Rated Voltage: 6V DC
Operate Voltage: 3,6V DC @ 23°C
Release Voltage: 0,6V DC @ 23°C
CONTACTS DATA
Release Time: 10ms
Operate Time: 10ms
Rated Current On The Contacts: NO/NC 40A/30A 14VDC
Contact Resistance: 100mΩ(1A 6VDC)

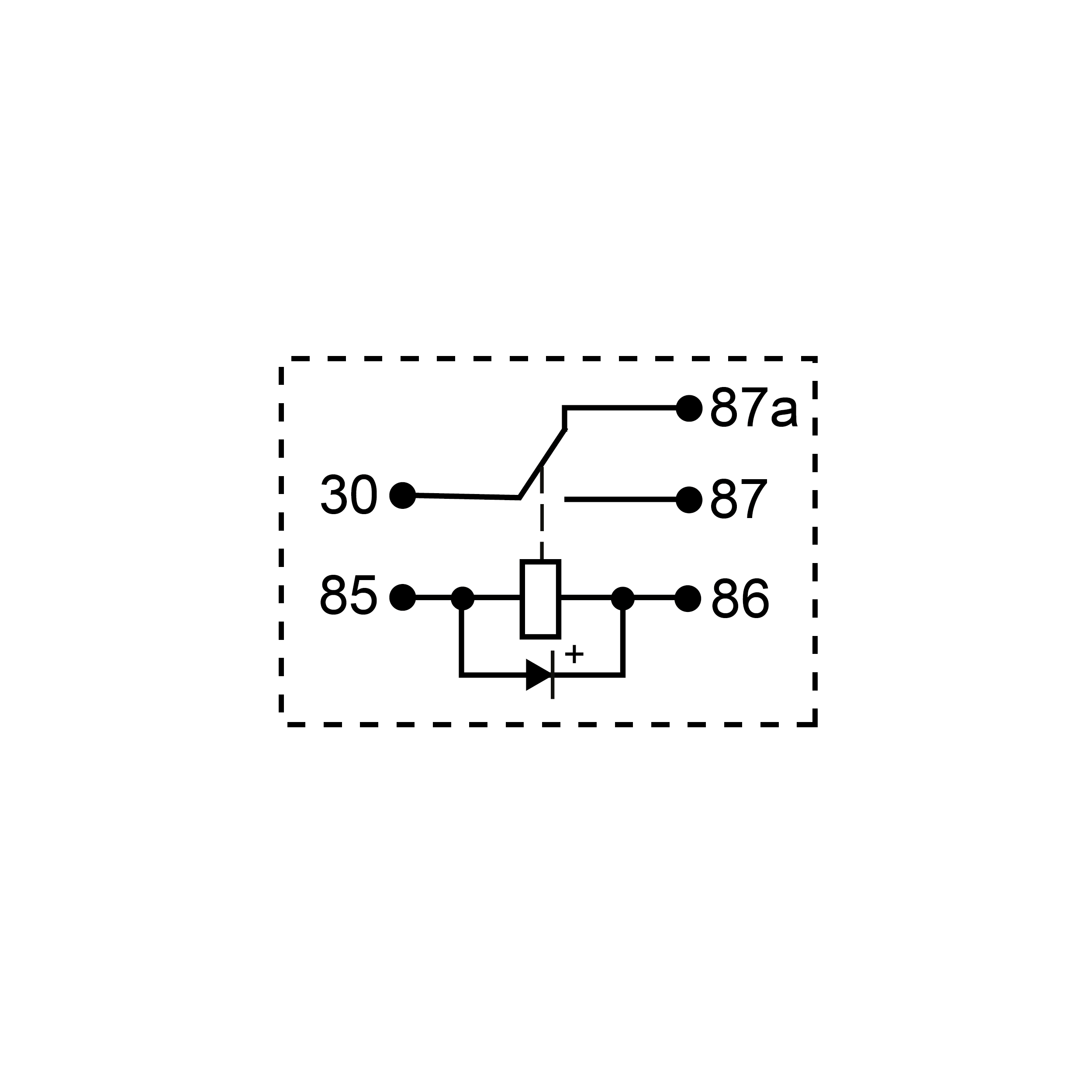

Contacts Arrangement: 1Z CO/SPDT
Electrical Lifestime: 1x105OPS(20 OPS/min)
Insulation Resistance: 100MΩ(500VDC)
Max Continuous Current: 40A
Max Switching Current: 40A
Mechanical Lifetime: 1X106OPS (30OPS/min)
OTHER DATA
Dielectric Strength Between Open Contacts: 500VAC 1 min.
Dielettric Strenght: 500VAC 1 min.
Operating Temperature: -40°C to 125°C
MATERIALS
Terminals: Silver Alloy
ADDITIONAL DATA
Vibration Test (ISO 16750-3): 5HZ to 22.3HZ 10mm Double amplitude 22.3Hz～500Hz,98 m/s2
PACKAGING
MOQ: 2000
Anchor | Bracket: NO
WEIGHT
Single Net Weight: 26,2
