Request for Technical Drawing / Extra Info for
"Automotive relay 7P 06V 40A With shell American standards NO/NC – ZDCY-06ZSU"

Enter the OEM, ODM or major distributors codes to search for your product

ZDCY-06ZSU

Automotive relay 7P 06V 40A With shell American standards NO/NC – ZDCY-06ZSU

Home / PCB Relays / Automotive PCB Relays / Automotive relay 7P 06V 40A With shell American standards NO/NC – ZDCY-06ZSU

COIL DATA

Release Voltage: 0,6V DC @ 23°C

Operate Voltage: 3,9V DC @ 23°C

Num. Terminals: 7P

Rated Voltage: 6V DC

Coil Power: 1.6W

Coil Resistance: 22,5Ω

CONTACTS DATA

Contact Resistance: 100mΩ(1A 6VDC)

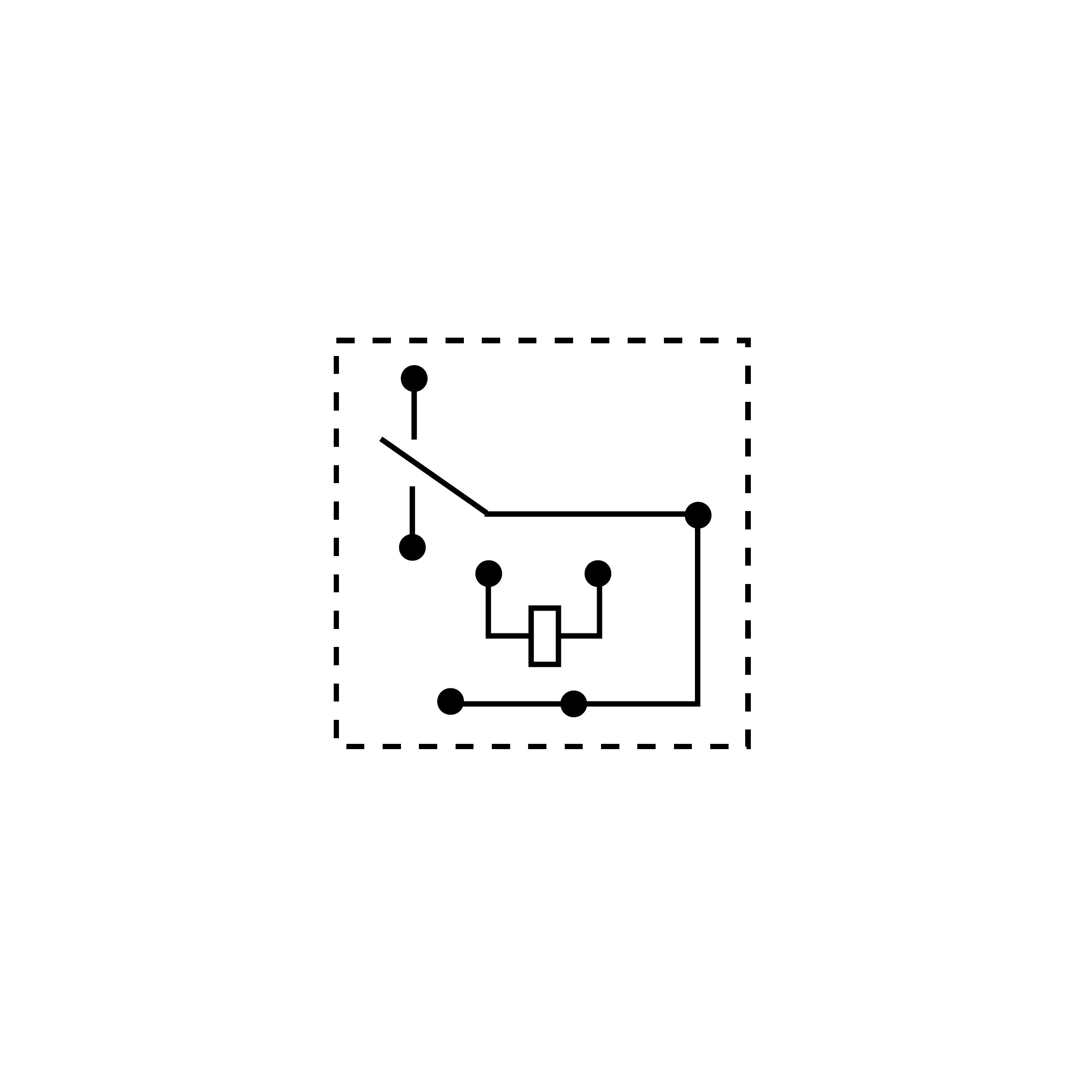

Contacts Arrangement: 1Z CO/SPDT

Electrical Lifestime: 1x105OPS(10 OPS/min)

Insulation Resistance: 100MΩ (500VDC)

Max Continuous Current: 40A

Max Switching Current: 40A

Mechanical Lifetime: 1X107OPS (30OPS/min)

Release Time: 10ms

Rated Current On The Contacts: NO/NC 40A/30A 14VDC

Operate Time: 10ms

OTHER DATA

Dielectric Strength Between Open Contacts: 500VAC 1 min.

Dielettric Strenght: 500VAC 1 min.

Operating Temperature: -40℃ to 85℃

MATERIALS

Terminals: Silver Alloy

ADDITIONAL DATA

Cross Reference: HFKP/-xx

Vibration Test (ISO 16750-3): 10HZ to 55HZ 1.5mm Double amplitude

PACKAGING

MOQ: 2000

Anchor | Bracket: NO

WEIGHT

Single Net Weight: ≈20g
