The BUA Reverse Warning Relay is a warning device developed to increase safety when reversing slow moving vehicles. This device, combined with a buzzer or a warning device, generates an intermittent acoustic signal when the vehicle is reversed, alerting of the danger to the operators who are in the immediate vicinity of the vehicle.

Request for Technical Drawing / Extra Info for
"BUA – Back Up Alarm Relay – 90.204.201"

Enter the OEM, ODM or major distributors codes to search for your product

90.204.201

BUA – Back Up Alarm Relay – 90.204.201

COIL DATA

Operating Voltage: 9 ÷ 15 V

Num. Terminals: 4

Operate Voltage: ≤ 10V

Rated Load: 150W

Rated Voltage: 12V DC

CONTACTS DATA

Rated Current On The Contacts: 150W

Mechanical Lifetime: 1.000.000 cycles

Electrical Lifestime: 150h Continuous

PROTECTIONS

Short Circuit Protection: Not Available

Reverse Polarity Protection: Not Available

Degree Protection: IP 54 DIN40050

IP Protection: Not Available

Over Current Protection: Not Available

Over Voltage Protection: Not Available

OTHER DATA

Connection: Quick Connected Terminals

Flammability: UL94-HB

Operating Temperature: -30°C ÷ +70°C

Storage Temperature: -45°C ÷ 110°C

Test Temperature: + 23°C

MATERIALS

Terminals: Cu Zn

Housing: PA 66 GF25

Baseplate: PA 66 GF25

Bobbin Structure: PA 66 GF25

ADDITIONAL DATA

Homologation Number: E1 03 5315

In Conformity with: EU Dir. 2002/95/EC RoHS

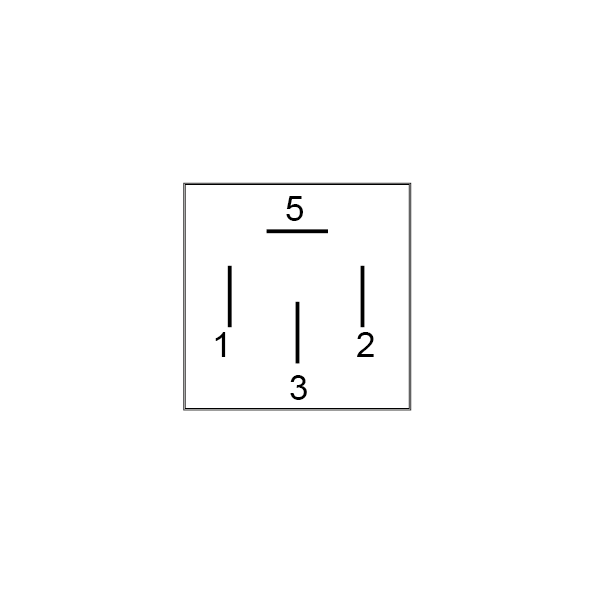

Terminals Assignment: ISO 8092

Terminals Assignment/Terminal Number Assignmet: ISO 7588-1

Salt Spray Test (ISO 16750-3): 96h

Company IMDS: 75948

PACKAGING

Packing Options: 1pcs/30pcs/300pcs

Anchor | Bracket: Included

WEIGHT

Single Net Weight: 36g
