CV.2412.03.01.A1

DC/DC CONVERTER 24V to 12V 3A 3 WIRES – CV.2412.03.01.A1

Home / DC/DC Converter / HL-LV DC/DC converter - Step-down/Buck / DC/DC CONVERTER 24V to 12V 3A 3 WIRES – CV.2412.03.01.A1

COIL DATA

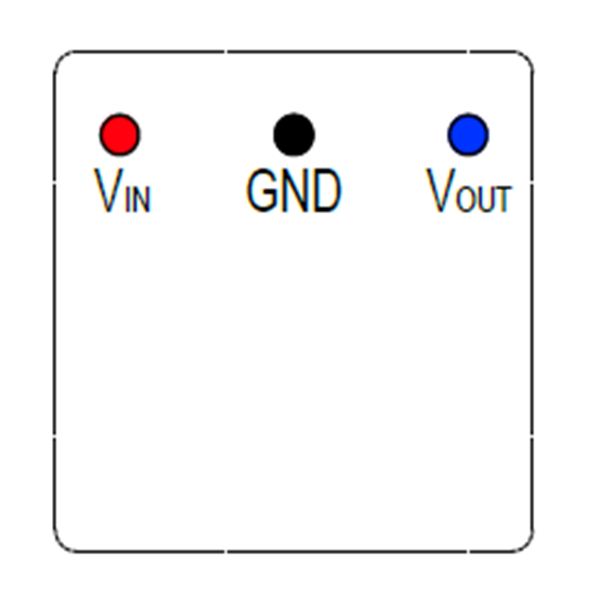

Num. Terminals: 3

Rated Voltage: 24V DC

CONTACTS DATA

Rated Load: 3A @ 23°C

PROTECTIONS

Reverse Polarity Protection: Present

IP Protection: IP54

OTHER DATA

Efficency at Load: >90%

Input Voltage Range: (18÷32)V DC

Operating Temperature: (-30÷+70)°C

Output Voltage Range: (12,8±0,5)V DC

Output Voltage Ripple: <150mVpp

Overheat Protection: Present

Overload Protection: Present

Peak Current: 3,7A @ 23°C and 3,5A @ 70°C

Stanby Current: <1mA

Storage Temperature: (-40÷+85)°C

MATERIALS

Terminals: Wires
