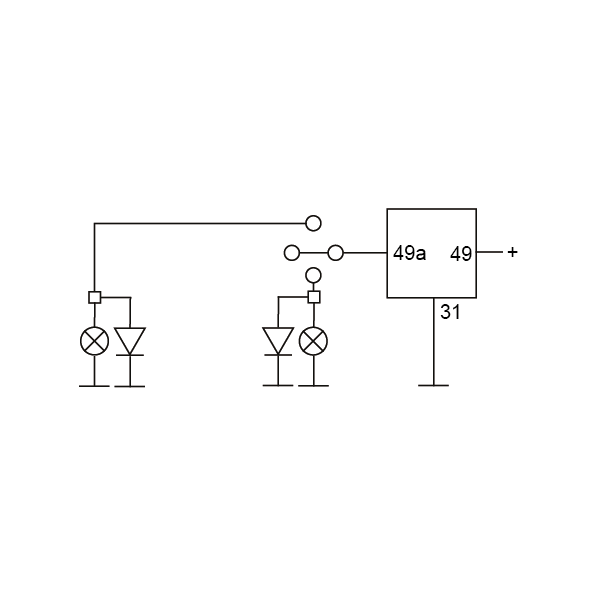

x21_31-49a-49.png)
100.213.01
Without Failure Detection
COIL DATA
Operating Voltage: 10 ÷ 15V
Num. Terminals: 3

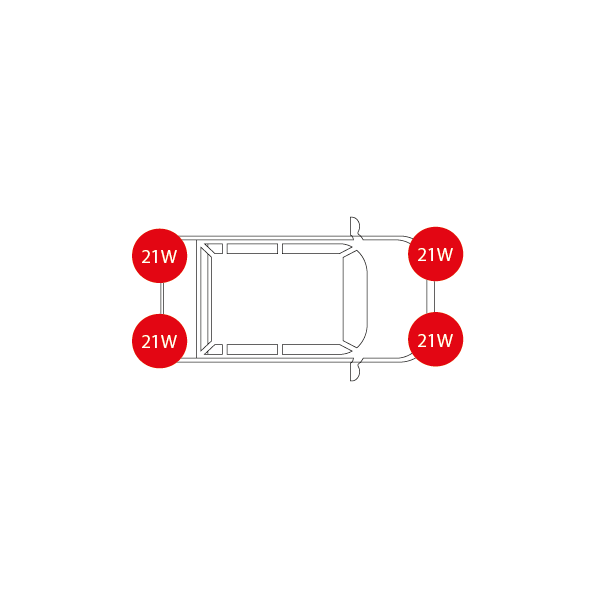

Rated Load: 10… 170W @ UP
Rated Load During Hazard Warning: 170W @ UP
Rated Voltage: 12V DC
Pull - In Voltage: ≤ 10V @ 23°C
CONTACTS DATA
Electrical Lifestime: 200h Continuous
Electrical Lifetime in Hazard mode: 36h
PROTECTIONS
Reverse Polarity Protection: -13V (1')
Short Circuit Protection: 20A (1')
Degree Protection: IP 54 DIN40050
Over Voltage Protection: 18V (1h)
OTHER DATA
Connection: Quick Connected Terminals
Flashing Frequency: 85 ±15 CPM
Flashing Frequency during the failure warning: 170 ± 30 CPM
Duty Cycle: 50% (±3)
Operating Temperature: -40°C ÷ 80°C
Diagnostics: Present, a failure warning
Storage Temperature: -40°C ÷ 110°C
Test Temperature: + 23°C
MATERIALS
Terminals: Cu Zn
Metal Bracket: DC01 - EN 10130
Housing: PA 66 GF15
Baseplate: PA 66 GF30
ADDITIONAL DATA
Homologation Number: 10R-02 7024
Company IMDS: 75948
In Conformity with: EU Dir. 2002/95/EC RoHS
Preferential Origin: Made in Italy
Salt Spray Test (ISO 16750-3): 96h @ 5% NaCl
Terminals Assignment: ISO 8092
Terminals Assignment/Terminal Number Assignmet: ISO 7588-1
PACKAGING
Packing Options: 1pcs/30pcs/300pcs
Anchor | Bracket: Included
WEIGHT
Single Net Weight: 28g
