Request for Technical Drawing / Extra Info for
"Flasher Unit for Bulbs – 81980"

Enter the OEM, ODM or major distributors codes to search for your product

81980

Flasher Unit for Bulbs – 81980

Home / Flashers & Solutions for LED Conversion / Flashers for 21W Indicators / Flasher Unit for Bulbs – 81980

With Failure Detection

COIL DATA

Num. Terminals: 3

Operating Voltage: 10 ÷ 15V

Rated Load: 2 X 21W

Rated Load During Hazard Warning: 4 X 21W

Rated Voltage: 12V DC

CONTACTS DATA

Electrical Lifestime: 200h Continuous

Electrical Lifestime in Hazard mode: 36h

PROTECTIONS

Degree Protection: IP 54 DIN40050

OTHER DATA

Connection: Quick Connected Terminals

Flashing Frequency: 85 ±15 CPM

Flashing Frequency during the failure warning: 170 ± 30 CPM

Duty Cycle: 50% (±3)

Operating Temperature: -30°C ÷ 70°C

Diagnostics: Present, a failure warning

Storage Temperature: -45°C ÷ 110°C

Test Temperature: + 23°C

MATERIALS

Terminals: OT67 (UNI 4894)

Housing: PA 66 GF30

Baseplate: PA 66 GF30

ADDITIONAL DATA

Homologation Number: 10R-02 7024

Preferential Origin: Made in Italy

In Conformity with: EU Dir. 2002/95/EC RoHS

Company IMDS: 75948

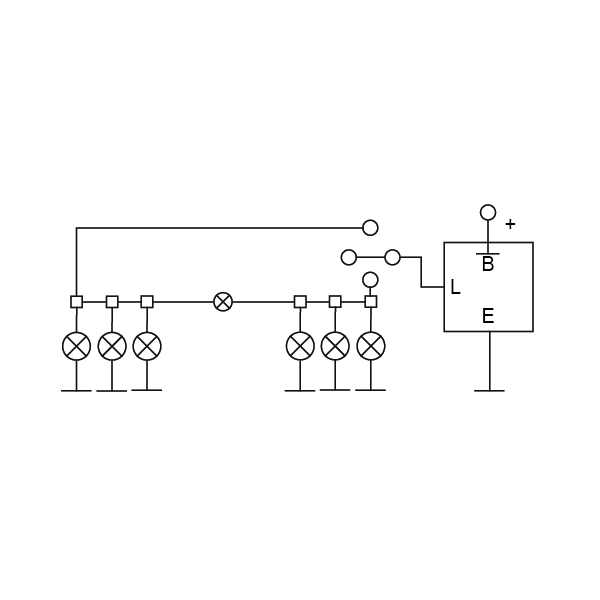

Terminals Assignment: ISO 8092

Terminals Assignment/Terminal Number Assignmet: ISO 7588-1

Salt Spray Test (ISO 16750-3): 96h @ 5% NaCl

PACKAGING

Packing Options: 1pcs/30pcs/300pcs

Anchor | Bracket: Without Bracket

WEIGHT

Single Net Weight: 28g
