Flasher Unit for Bulbs (C2) – 100.204.04

Home / Flashers & Solutions for LED Conversion / Power Relays up to 70A / Flasher Unit for Bulbs (C2) – 100.204.04

With Failure Detection

Coil Data

Operating Voltage: 18 ÷ 30V

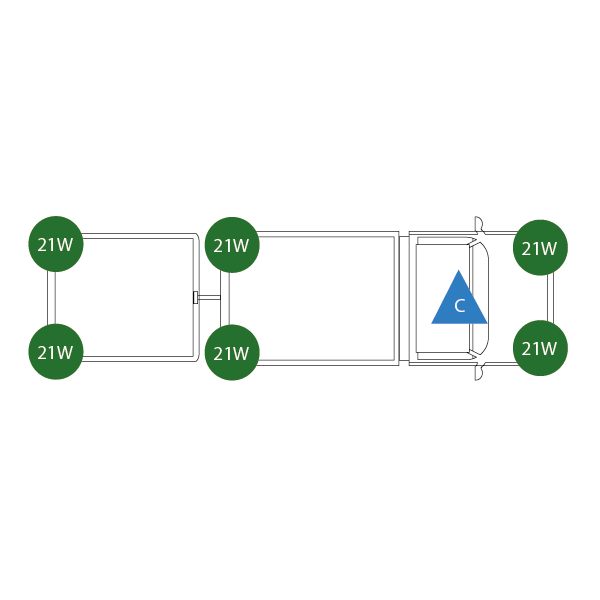

Rated Load: 2+1 (6) X21w
Rated Load During Hazard Warning: 6 X 21W
Rated Voltage: 24V DC
Num Terminals: 4

Contacts Data

Electrical Lifestime: 150h Continuous
Electrical Lifestime Hazard Mode: 36h

Protections

Degree Protection: IP 54 DIN40050

Other Data

Storage Temperature: -40°C ÷ 110°C
Flashing Frequency Warning: 170 ± 30 CPM
Flashing Frequency: 85 ±15 CPM
Diagnostics: Present, a failure warning
Connection: Quick Connected Terminals
Duty Cycle: 50% (±5)
Operating Temperature: -30°C ÷ 70°C
Test Temperature: + 23°C

Materials

Metal Bracket: DC01 - EN 10130
Housing: PA 66 GF25
Baseplate: PA 6,6 GF25
Terminals: Cu Zn

Additional Data

Terminals Assignment: ISO 8092
In Conformity with: EU Dir. 2002/95/EC RoHS
Terminals Assignment Terminal Number Assignmet: ISO 7588-1
Salt Spray Test: 96h @ 5% NaCl
Homologation Number: 10R-02 7391
Company IMDS: 75948
