100.205.01
With Failure Detection
COIL DATA

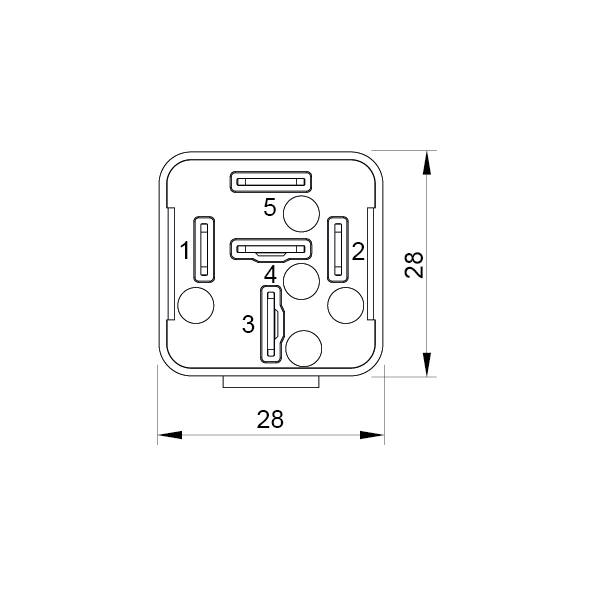

Num. Terminals: 5
Operating Voltage: 10 ÷ 15V
Pull - In Voltage: ≤ 10V @ 23°C
Rated Load: 10 ÷ 140W
Rated Load During Hazard Warning: 140W
Rated Voltage: 12V DC
CONTACTS DATA
Electrical Lifestime: 200h Continuous
Electrical Lifetime in Hazard mode: 36h
PROTECTIONS
Degree Protection: IP 54 DIN40050
OTHER DATA
Connection: Quick Connected Terminals
Flashing Frequency: 85 ±15 CPM
Flashing Frequency during the failure warning: 170 ± 30 CPM
Duty Cycle: 50% (±3)
Operating Temperature: -30°C ÷ 70°C
Diagnostics: Present, a failure warning
Storage Temperature: -45°C ÷ 110°C
Test Temperature: + 23°C
MATERIALS
Terminals: Cu Zn
Metal Bracket: DC01 - EN 10130
Housing: PA 66 GF30
Baseplate: PA 66 GF30
ADDITIONAL DATA
Homologation Number: 10R-02 7024
Preferential Origin: Made in Italy
In Conformity with: EU Dir. 2002/95/EC RoHS
Company IMDS: 75948

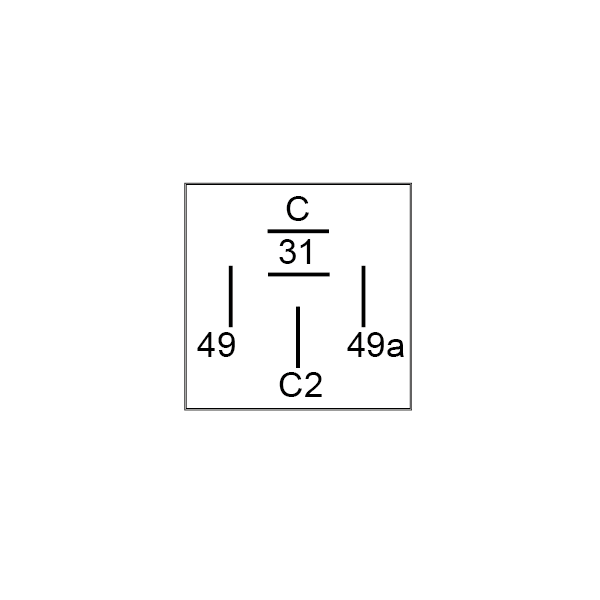

Terminals Assignment: ISO 8092
Terminals Assignment/Terminal Number Assignmet: ISO 7588-1
Salt Spray Test (ISO 16750-3): 96h @ 5% NaCl
PACKAGING
Packing Options: 1pcs/30pcs/300pcs
Anchor | Bracket: Included
WEIGHT
Single Net Weight: 28g
