100.103.01

Flasher Unit for Bulbs (No ground) – 100.103.01

Home / Flashers & Solutions for LED Conversion / Power Relays up to 70A / Flasher Unit for Bulbs (No ground) – 100.103.01

Without Failure Detection

Coil Data

Operating Voltage: 10 ÷ 15V

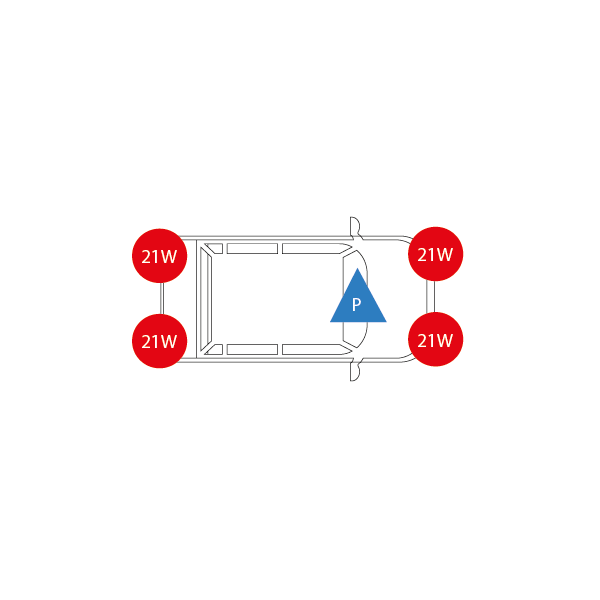

Rated Load: 10 ÷ 180W
Rated Voltage: 12V DC
Num Terminals: 3

Contacts Data

Electrical Lifestime: 200h Continuous
Electrical Lifestime Hazard Mode: 36h

Protections

Degree Protection: IP 54 DIN40050

Other Data

Storage Temperature: -40°C ÷ 110°C
Flashing Frequency Warning: NO
Flashing Frequency: 85 ±15 CPM
Diagnostics: Not Present, any failure warning
Connection: Quick Connected Terminals
Duty Cycle: 50% (±3)
Operating Temperature: -30°C ÷ 70°C
Test Temperature: + 23°C

Materials

Metal Bracket: DC01 - EN 10130
Housing: PA 66 GF25
Baseplate: PA 6,6 GF25
Terminals: Cu Zn

Additional Data

Terminals Assignment: ISO 8092
In Conformity with: EU Dir. 2002/95/EC RoHS
Terminals Assignment Terminal Number Assignmet: ISO 7588-1
Salt Spray Test: 96h at 5% NaCl
Homologation Number: 10R-03 0929
Company IMDS: 75948
