Flasher Unit for Bulbs (SAE) – 100.204.02

Home / Flashers & Solutions for LED Conversion / Flashers for 21W Indicators / Flasher Unit for Bulbs (SAE) – 100.204.02

With Failure Detection

COIL DATA

Num. Terminals: 4

Operating Voltage: 18 ÷ 30V

Pull - In Voltage: ≤ 18V @ 23°C

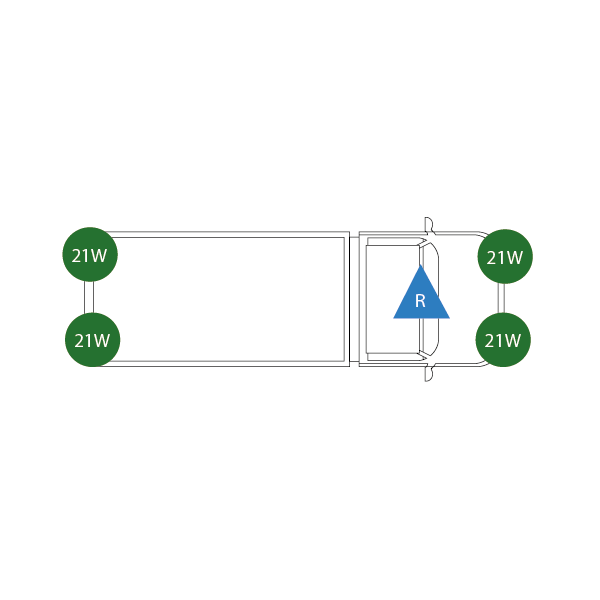

Rated Load: 2 (4) x 21W

Rated Load During Hazard Warning: 4 X 21W

Rated Voltage: 24V DC

CONTACTS DATA

Electrical Lifestime: 200h Continuous

Electrical Lifetime in Hazard mode: 36h

PROTECTIONS

Degree Protection: IP 54 DIN40050

OTHER DATA

Connection: Quick Connected Terminals

Flashing Frequency: 85 ±15 CPM

Flashing Frequency during the failure warning: 170 ± 30 CPM

Duty Cycle: 50% (±3)

Operating Temperature: -30°C ÷ 70°C

Diagnostics: Present, a failure warning

Storage Temperature: -45°C ÷ 110°C

Test Temperature: + 23°C

MATERIALS

Terminals: Cu Zn

Metal Bracket: DC01 - EN 10130

Housing: PA 66 GF30

Baseplate: PA 66 GF30

ADDITIONAL DATA

Homologation Number: 10R-02 7391

Preferential Origin: Made in Italy

In Conformity with: EU Dir. 2002/95/EC RoHS

Company IMDS: 75948

Terminals Assignment: ISO 8092

Terminals Assignment/Terminal Number Assignmet: ISO 7588-1

Salt Spray Test (ISO 16750-3): 96h @ 5% NaCl

PACKAGING

Packing Options: 1pcs/30pcs/300pcs

Anchor | Bracket: Included

WEIGHT

Single Net Weight: 26g
