Flasher Unit for Heavy Vehicles – 100.207.02.A1

Home / Flashers & Solutions for LED Conversion / Flashers for 21W Indicators / Flasher Unit for Heavy Vehicles – 100.207.02.A1

With Failure Detection

COIL DATA

Num. Terminals: 7

Operating Voltage: 18 ÷ 30V

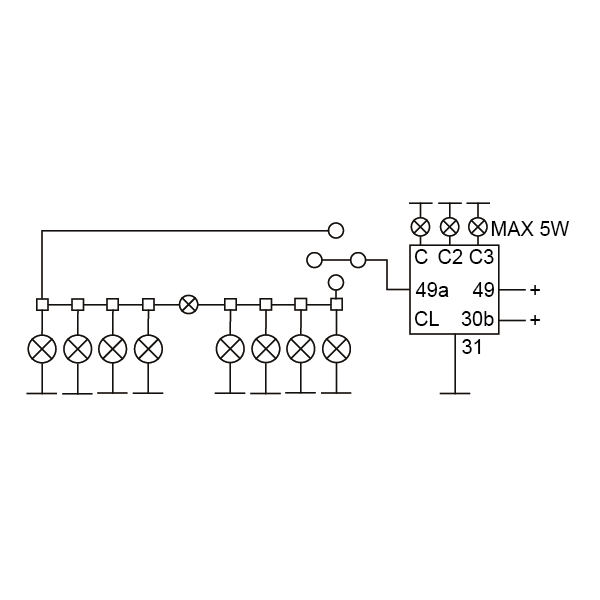

Rated Load: 2+1+1 (8) x 21W

Rated Load During Hazard Warning: 8 X 21W

Rated Voltage: 24V DC

CONTACTS DATA

Mechanical Lifetime: 1.000.000 cycles

Electrical Lifestime: 200h Continuous

Electrical Lifestime in Hazard mode: 36h

PROTECTIONS

Degree Protection: IP 54 DIN40050

OTHER DATA

Connection: Quick Connected Terminals

Flashing Frequency: 85 ±15 CPM

Flashing Frequency during the failure warning: 170 ± 30 CPM

Duty Cycle: 50% (±3)

Operating Temperature: -30°C ÷ 70°C

Diagnostics: Present, a failure warning

Storage Temperature: -45°C ÷ 110°C

Test Temperature: + 23°C

MATERIALS

Terminals: Cu Zn

Housing: PA 66 GF30

Baseplate: PA 66 GF30

ADDITIONAL DATA

Homologation Number: 10R-02 7391

Company IMDS: 75948

In Conformity with: ISO 13207 "Led Lamp Characteristics for bulb compatible failure detection PART 1: Led lamps used as direction indicators" & EU Dir. 2002/95/EC RoHS

Preferential Origin: Made in Italy

Salt Spray Test (ISO 16750-3): 96h @ 5% NaCl

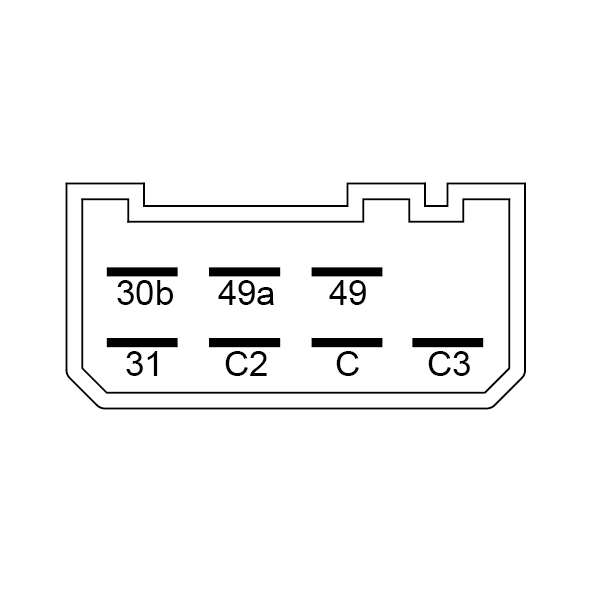

Terminals Assignment: ISO 8092

Terminals Assignment/Terminal Number Assignmet: ISO 7588-1

PACKAGING

Packing Options: 1pcs/12pcs/100pcs

Anchor | Bracket: Included

WEIGHT

Single Net Weight: 70g
