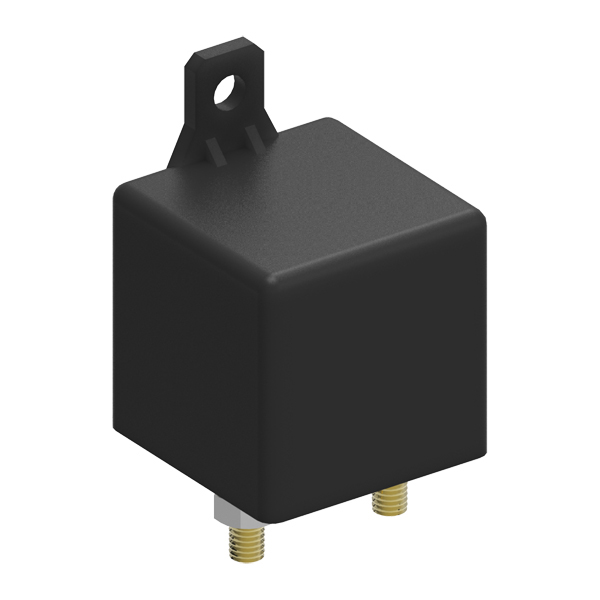

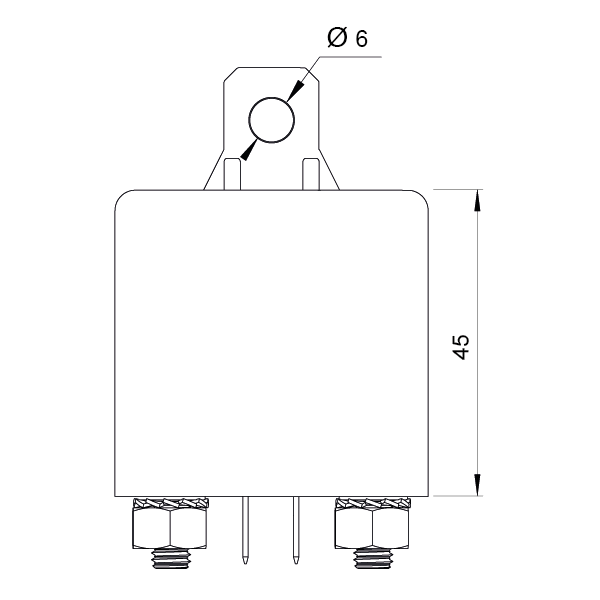

Heavy Duty Relay 180A 4P – R24V180.A1

Home / Heavy Duty Relays up to 230A / Heavy Duty Relays / Heavy Duty Relay 180A 4P – R24V180.A1

SPST/Normally Open

COIL DATA

Coil Resistance: 60Ω ± 10%

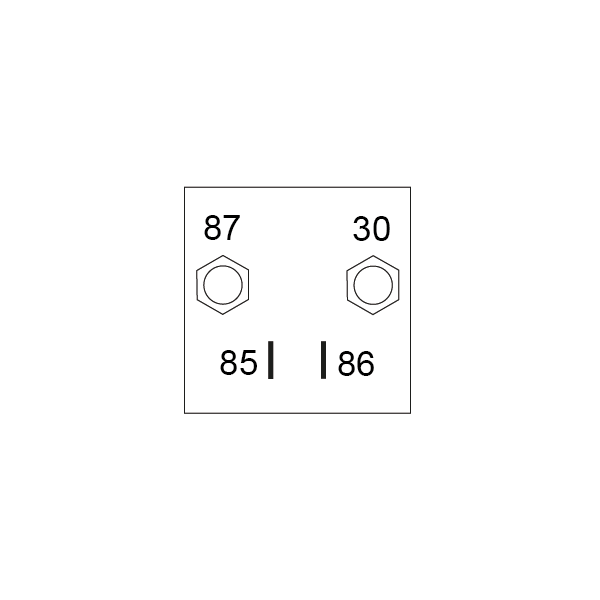

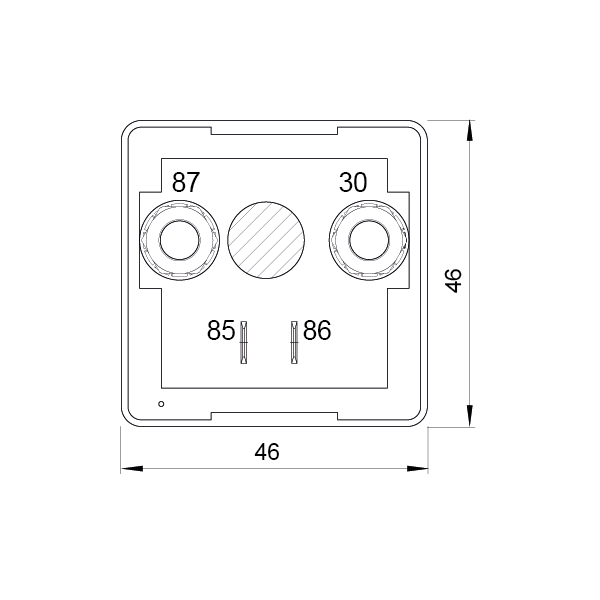

Num. Terminals: 4

Operating Voltage: 17 ÷ 30V

Rated Voltage: 24V DC

Release Voltage: >2,4V @23°C

CONTACTS DATA

Resistor Presence: NOT

Rated Current On The Contacts: 180A

Typical Votage Drop: ≤ 25mV @ 40A (initial)

Contact Gap: ≥ 2mm

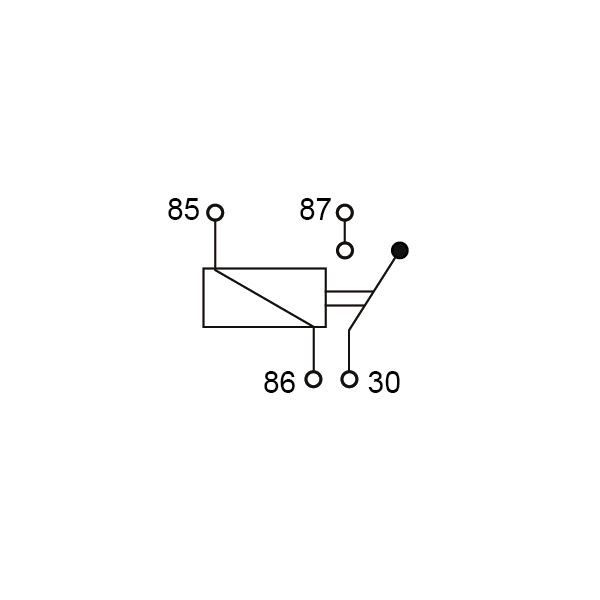

Contacts Arrangement: SPST/Normally Open

Contacts Operate Time: ≤ 10ms

Contacts Pressure: 2,2 ÷ 3,1N

Contacts Voltage Drop: 25mV @40A

Diode Presence: NOT

Electrical Lifestime: 50.000 cycles

Limiting Make/Break Current: 180A 10"ON / 10" OFF @23°C 150A 10"ON / 10" OFF @80°C

Limiting Short Time Current: 250A / 1"

Max Continuous Current: 120A @ 23°C 80A @ 80°C

Mechanical Lifetime: 1.000.000 cycles

PROTECTIONS

Degree Protection: IP 54 DIN40050

OTHER DATA

Connection: Quick Connected Terminals + M8 Screw Terminals

Dielettric Strenght: 500Vms Contact/Coil

Flammability: UL94-V0

Storage Temperature: -45°C ÷ 125°C

Test Temperature: + 23°C

Tightening Torque: 5N/m Max 7N/m

MATERIALS

Screw Terminals: CuSn ( size M8)

Terminal Treatment: Zn 5µm

Terminals: Cu

Fixed Contact: AgSnO₂

Housing: PA 66 GF25

Moving Contact: AgSnO₂

Baseplate: PA 66 GF25

Bobbin Structure: PA 66 GF25

Bobbin Wire: 2 EUW / 180° D. 0,10

ADDITIONAL DATA

Company IMDS: 75948

In Conformity with: DIN46244 | IEC 60529 | EU Dir. 2002/95/EC RoHS

Homologation Number: E49 10R-05 0131 w/R=560Ω 2W

Vibration Test (ISO 16750-3): 5G @ 1 axis

Salt Spray Test (ISO 16750-3): 96h

PACKAGING

Packing Options: 1Pc/30pcs/138pcs

Anchor | Bracket: With Plastic Bracket

WEIGHT

Single Net Weight: 150g
