R24V80XSN.A1

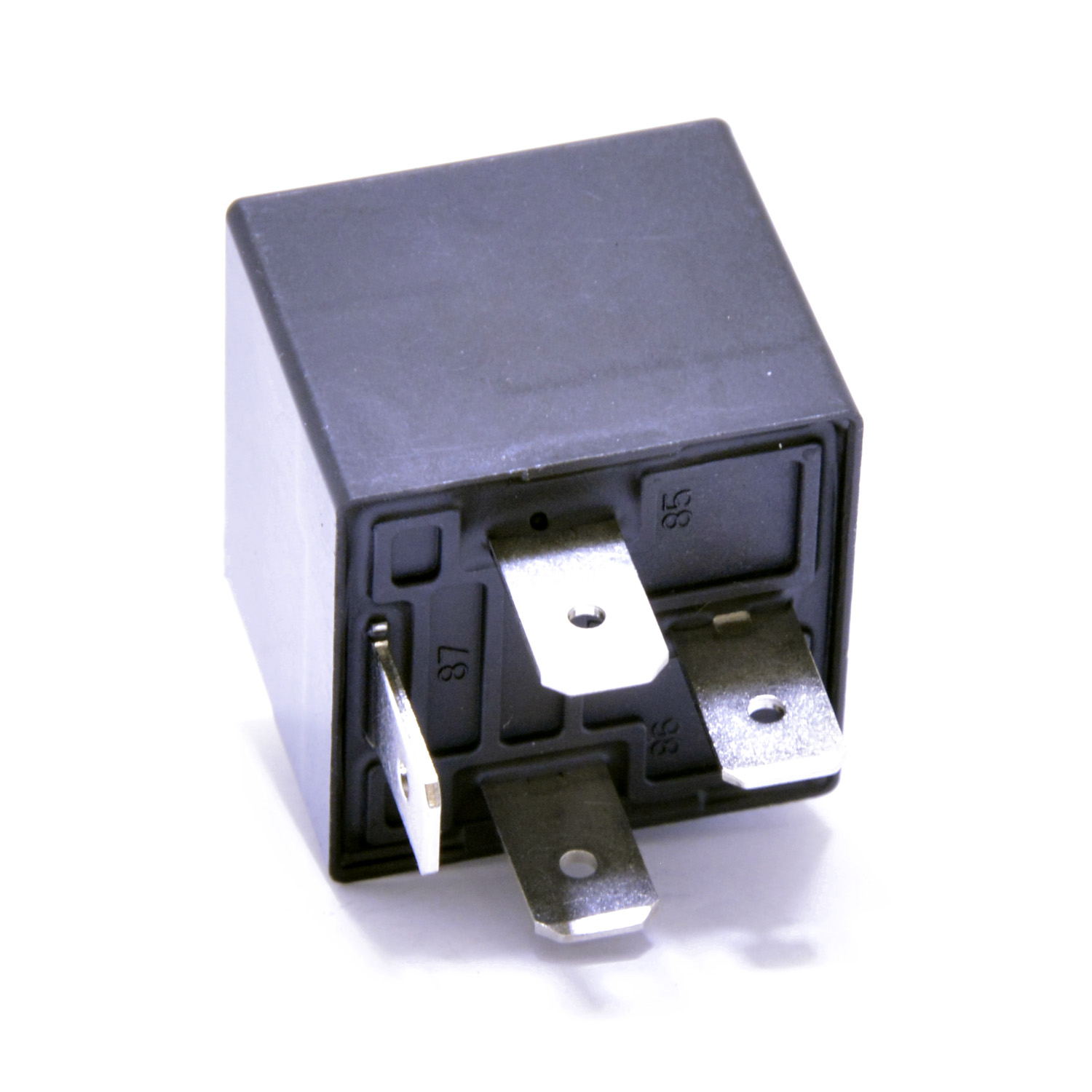

HEAVY DUTY RELAY 24V 2,4W 80A N.O. WITHOUT PLASTIC BRACKET – R24V80XSN.A1

Home / Heavy Duty Relays up to 230A / Heavy Duty Relays / HEAVY DUTY RELAY 24V 2,4W 80A N.O. WITHOUT PLASTIC BRACKET – R24V80XSN.A1

COIL DATA

Operate Voltage: ≤17V

Release Voltage: ≥2,4V

Coil Power: 2,4W

Coil Resistance: 240Ω

Operating Voltage: 17V÷31,2V

Rated Voltage: 24V DC

Num. Terminals: 4

CONTACTS DATA

Operate Time: < 10ms

Electrical Lifestime: 5x10^4 cycles @ 5” ON / 10”OFF @ 100A

Release Time: < 5ms

Rated Current On The Contacts: 80A

Contacts Arrangement: 1A - 1H (NO/SPST)

Insulation Resistance: 100M Ω @ 500VDC

Max Switching Current: 100A

Mechanical Lifetime: 1x10^6 cycles (Without load)

OTHER DATA

Dielettric Strenght: 500VAC/m

Operating Temperature: -40℃ to +85℃

MATERIALS

Baseplate: PA66 GF30

Fixed Contact: AgSnO2In

Housing: PA66

Screw Terminals: FeZn (size M6)
