High Current Relay 12V with Resistor – SRS-S-12-N-R-A1

Home / Heavy Duty Relays up to 230A / High Current Relay / High Current Relay 12V with Resistor – SRS-S-12-N-R-A1

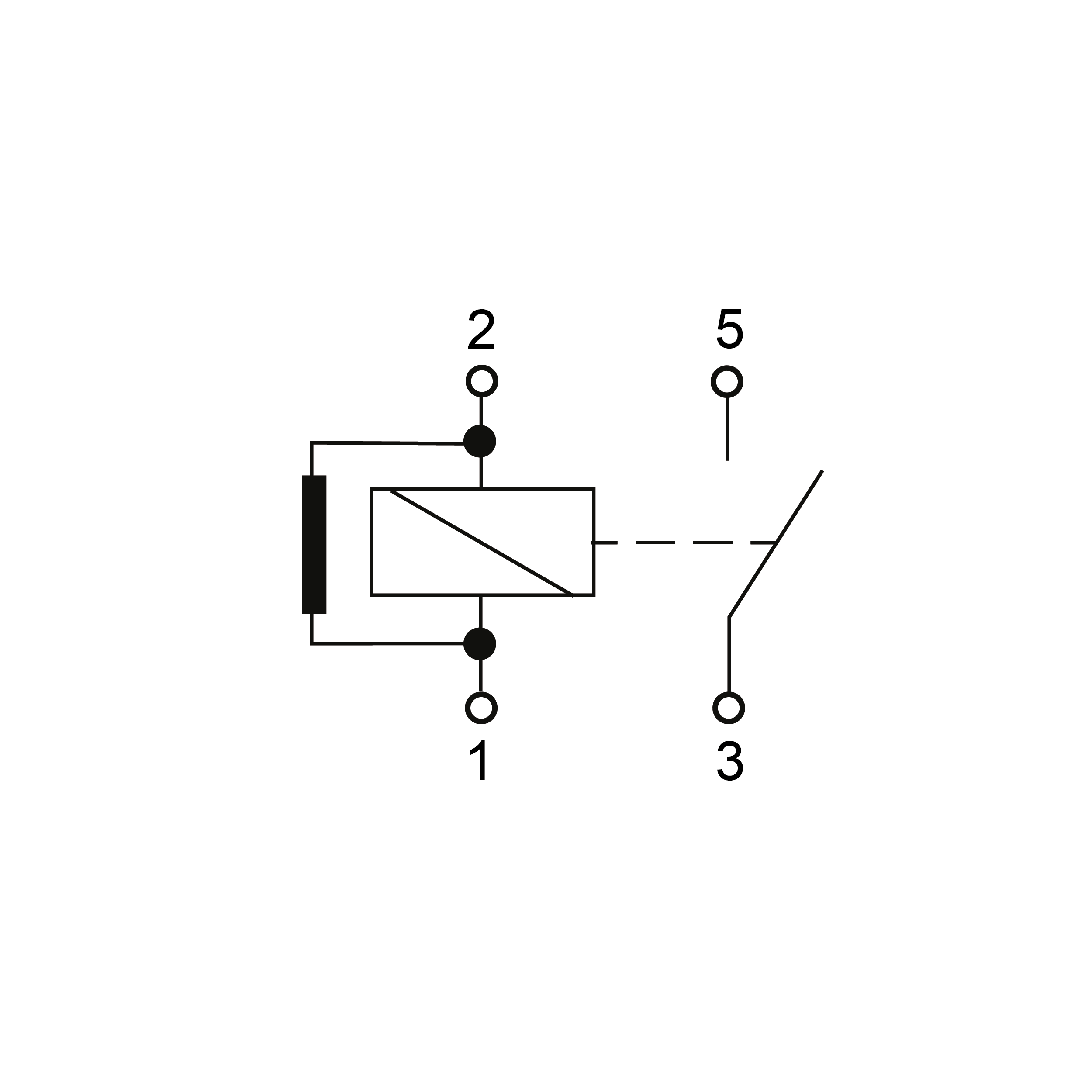

Normally Open

COIL DATA

Coil Power: 4,1W

Coil Resistance: 35Ω ±10%

Rated Voltage: 12V DC

Release Voltage: ≥1,2V

Operate Voltage: ≤8V

CONTACTS DATA

Resistor Presence: Yes

Release Time: <15ms

Rated Current On The Contacts: 150A

Max Continuous Current: 180A

Max Switching Current: 300A @ 1s

Mechanical Lifetime: 1000000 cycles Without Load

Operate Time: <30ms

Contacts Arrangement: 1H (NO/SPST)

Electrical Lifestime: 50000 cycles @ 150A, 5"ON / 10"OFF

OTHER DATA

Connection: Coil Terminal: TYCO Superseal 1,5 series 282080-1; Load Terminal: 2xM6

Dielettric Strenght: 500V-1000V AC/m

Operating Temperature: -40°C ÷ +85°C

MATERIALS

Fixed Contact: AgSnO2/Cu

Housing: PA66

Baseplate: PA66

ADDITIONAL DATA

In Conformity with: IP6K5
