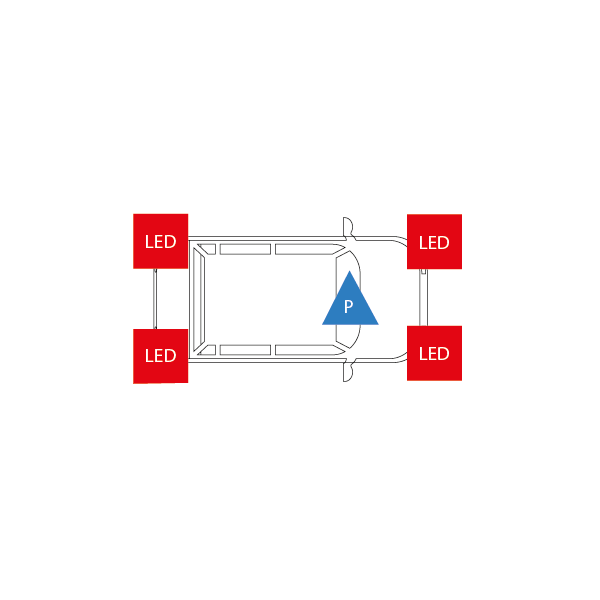

LED Flasher Unit - 100.103.01.LED

Without Failure Detection

Coil Data

Operating Voltage: 10 ÷ 15V
Rated Load: Max 30W
Rated Load During Hazard Warning: 30W
Rated Voltage: 12V DC
Num Terminals: 3

Contacts Data

Mechanical Lifetime: 1.000.000 cycles
Electrical Lifestime: 150h Continuous
Electrical Lifestime Hazard Mode: 36h
Insulation Resistance: 500V Veff.


Degree Protection: IP 54 DIN40050
Short Circuit Protection: 20A (1')
Reverse Polarity Protection: -13V (1')
Over Voltage Protection: 18V (1h)

Other Data

Storage Temperature: -45°C ± +110°C
Flashing Frequency Warning: 170 CPM
Flashing Frequency: 85 ±15 CPM
Flammability: UL94-HB
Diagnostics: Not Present, any failure warning
Connection: Quick Connected Terminals
Duty Cycle: 50% (±5)
Operating Temperature: -30°C ± +70°C
Test Temperature: + 23°C


Housing: PA 66 GF25
Bobbin Structure: PA 66 GF25
Baseplate: PA 6,6 GF25
Terminals: Cu Zn

Additional Data

Terminals Assignment: ISO 8092
In Conformity with: EU Dir. 2002/95/EC RoHS
Terminals Assignment Terminal Number Assignmet: ISO 7588-1
Salt Spray Test: 96h
Homologation Number: 10R-02 7394
Company IMDS: 75948
