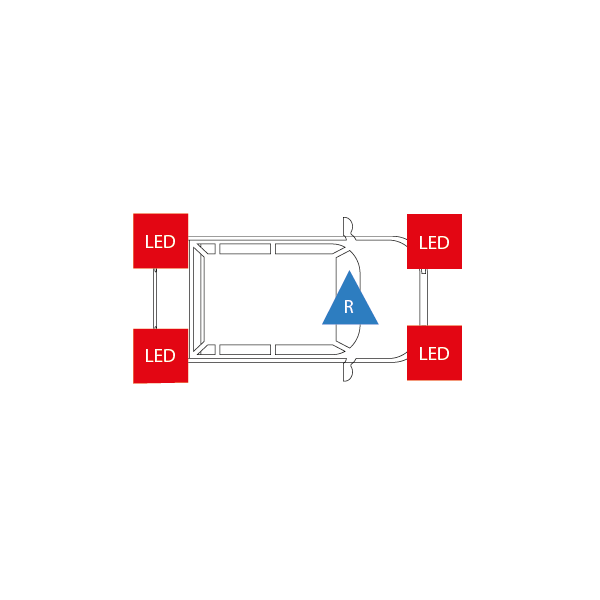

LED Flasher Unit – 200.104.01

Without Failure Detection

Coil Data

Operating Voltage: 10 ÷ 15V
Rated Load: Max 30W
Rated Voltage: 12V DC
Num Terminals: 4

Contacts Data

Electrical Lifestime: 400h Continuous
Electrical Lifestime Hazard Mode: 36h


Degree Protection: IP 54 DIN40050

Other Data

Storage Temperature: -45°C ÷ 110°C
Flashing Frequency Warning: 170 ± 30 CPM
Flashing Frequency: 85 ±15 CPM
Diagnostics: Present, a failure warning
Connection: Quick Connected Terminals
Duty Cycle: 50% (±3)
Operating Temperature: -30°C ÷ 70°C
Test Temperature: + 23°C


Housing: PA 66 GF25
Baseplate: PA 6,6 GF25
Terminals: Cu Zn

Additional Data

Terminals Assignment: ISO 8092
In Conformity with: EU Dir. 2002/95/EC RoHS
Terminals Assignment Terminal Number Assignmet: ISO 7588-1
Salt Spray Test: 96h @ 5% NaCl
Homologation Number: 10R-02 7394
Company IMDS: 75948
