Request for Technical Drawing / Extra Info for
"Led Pulse Generator – 200.003.01"

200.003.01

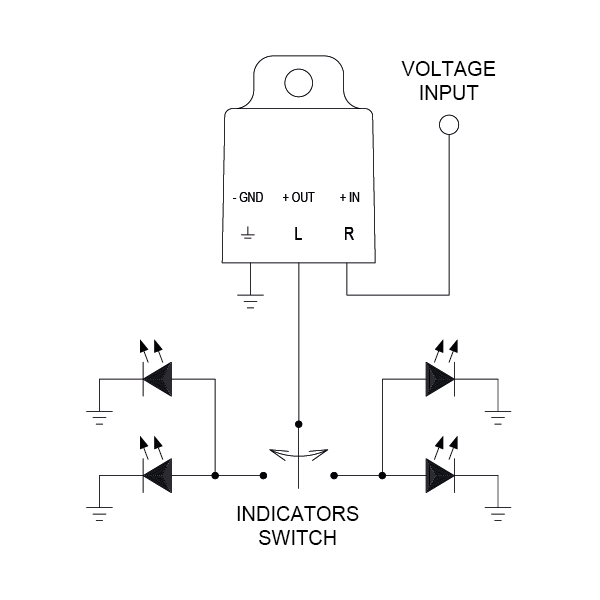

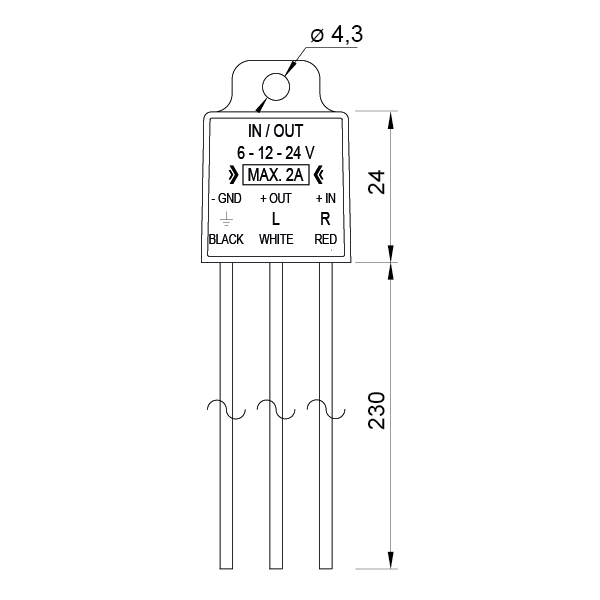

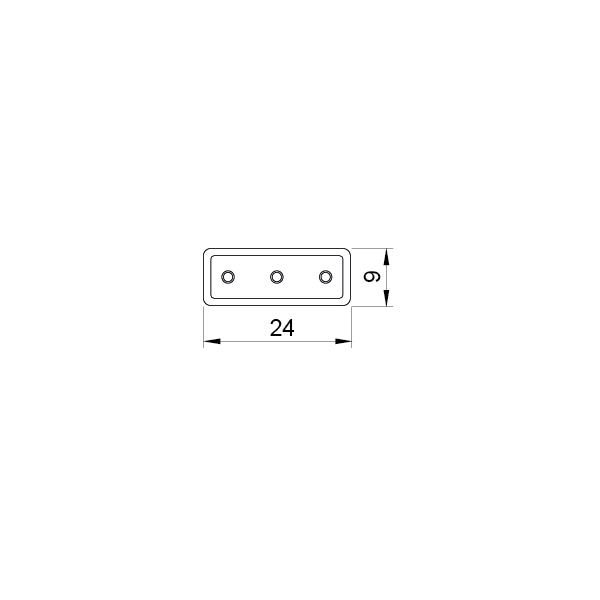

Led Pulse Generator - 200.003.01

Without Failure Detection

Coil Data

Operating Voltage: 5,5 ÷ 30 V
Rated Load: Max 2A
Rated Voltage: 6V DC 12V DC 24V DC
Num Terminals: 3

Contacts Data

Mechanical Lifetime: 1.000.000 cycles
Electrical Lifestime: 150h Continuous
Electrical Lifestime Hazard Mode: 36h
Insulation Resistance: 500V Veff.
Operate Time: ≤ 200 ms
Rated Current: Max 2A

Protections

Degree Protection: IP 68 DIN40050
Short Circuit Protection: Not Available
Reverse Polarity Protection: Available
IP Protection: Not Available
Over Voltage Protection: Not Available
Over Current Protection: Not Available

Other Data

Storage Temperature: -45°C ± +110°C
Flashing Frequency Warning: 170 CPM
Flashing Frequency: 85 ±15 CPM
Flammability: UL94-HB
Diagnostics: Not Present, any failure warning
Connection: Loose ADR Cables
Duty Cycle: 50% (±5)
Operating Temperature: -30°C ± +70°C
Test Temperature: + 23°C

Materials

Housing: PA 66 GF25
Cables: 1x0,75mm²
Bobbin Structure: PA 66 GF25
Baseplate: PA 6,6 GF25
Terminals: Cu Zn

Additional Data

Terminals Assignment: ISO 8092
In Conformity with: EU Dir. 2002/95/EC RoHS
Terminals Assignment Terminal Number Assignmet: ISO 7588-1
Salt Spray Test: 96h
Company IMDS: 75948
