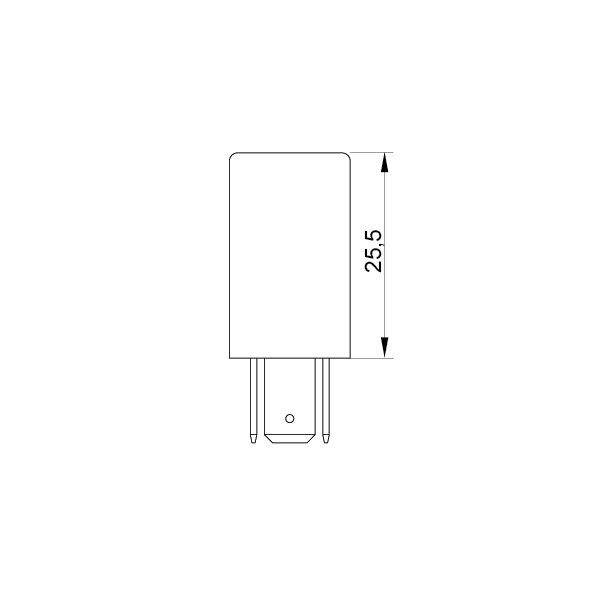

M.20.405.101.A1
SPDT/Change Over C.O.
COIL DATA
Coil Resistance: 360Ω ± 10%
Num. Terminals: 5
Operate Voltage: ≤ 16,8V DC
Operating Voltage: 18 ÷ 30V
Rated Voltage: 24V DC
Release Voltage: ≥ 3V
CONTACTS DATA
Resistor Presence: NOT
Rated Current On The Contacts: 10A (4) / 15A (5)
Max Continuous Current: 20A @ 23°C - 15A @ 85°C
Mechanical Lifetime: 1.000.000 cycles

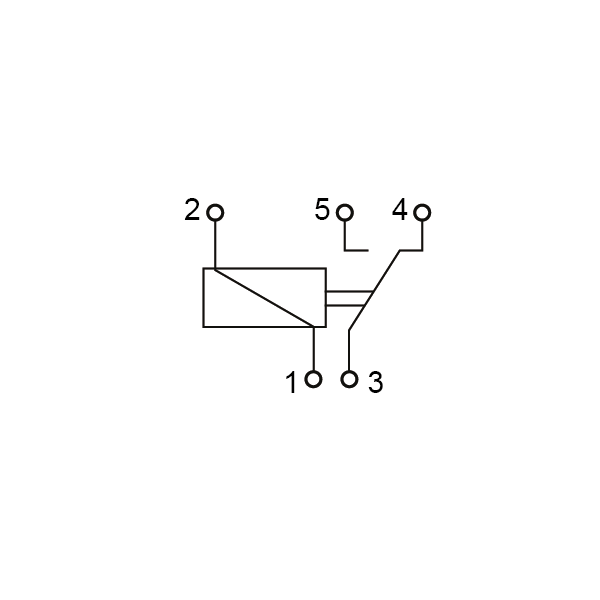

Contacts Arrangement: SPDT/Change Over
Contacts Voltage Drop: ≤ 50mV @ 23°C
Diode Presence: NOT
Electrical Lifestime: 100.000 cycles @ 15A 2"ON / 2"OFF
PROTECTIONS
Degree Protection: IP 54
OTHER DATA
Dielettric Strenght: 500V AC
Operating Temperature: -40°C ÷ 85°C
Storage Temperature: -45°C ÷ 110°C
Test Temperature: + 23°C
MATERIALS
Terminal Treatment: Sn 5µm
Terminals: CuZn 37
Housing: PA 66 GF25
Moving Contact: AgSnO₂
Baseplate: PA 66 GF25
Fixed Contact: AgSnO₂
ADDITIONAL DATA
Company IMDS: 75948
Homologation Number: 10R-02 7385
In Conformity with: ISO7588 | DIN46244 | ISO 8092 | IEC 60529 | EU Dir. 2002/95/EC RoHS
Salt Spray Test (ISO 16750-3): 96h at 5% NaCl
Terminals Assignment/Terminal Number Assignmet: ISO 7588 | ISO 8092
PACKAGING
Packing Options: 1pc/30pcs/200pcs
Anchor | Bracket: Without Bracket
WEIGHT
Single Net Weight: 20g
