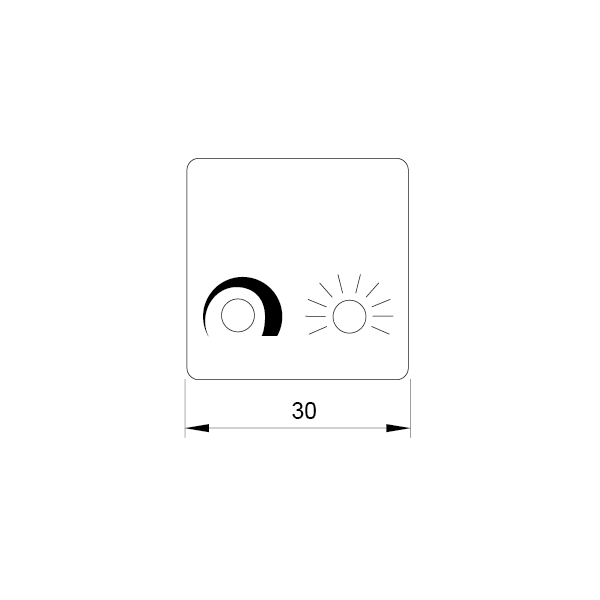

TIMER DELAY | RITARDO TIMER

pos. 0 = 0,5… 10’’ delay OFF
pos. 1 = 5… 60’’ delay OFF
pos. 2 = 0,5… 10’ delay OFF
pos. 3 = 5… 60’ delay OFF
pos. 4 = 0,5… 6 h delay OFF
pos. 5 = 0,5… 6 h delay ON
pos. 6 = 5… 60’ delay ON
pos. 7 = 0,5… 10’ delay ON
pos. 8 = 5… 60’’ delay ON
pos. 9 = 0,5… 10’’ delay ON
Request for Technical Drawing / Extra Info for
"Multitimer Relay – T.40.206.A1"

T.40.206.A1

Multitimer Relay - T.40.206.A1

User adjustable

Coil Data

Operating Voltage: 9 ÷ 15 V
Rated Load: 20A (87) /25A (87a)
Coil Resistance: 90Ω ± 10%
Release Voltage: Max 75V DC
Rated Voltage: 12V DC
Operating Voltage: ≤ 9V DC
Num Terminals: 6

Contacts Data

Contacts Arrangement: SPDT/Change Over
Mechanical Lifetime: 1.000.000 cycles
Electrical Lifestime: 200.000 cycles
Rated Current: 25A

Protections

Degree Protection: IP 54 DIN40050

Other Data

Storage Temperature: -45°C ± +110°C
Flammability: UL94-HB
Connection: Quick Connected Terminals
Operating Temperature: -40°C ± +85°C
Test Temperature: + 23°C

Materials

Metal Bracket: Steel CK67
Housing: PA 66 GF25
Moving Contact: AgSnO₂
Bobbin Wire: 12V P155 IEC60317
Baseplate: PA 6,6 GF25
Fixed Contact: AgSnO₂
Terminals: Cu Zn -Sn
Terminal Treatment: Sn 5µm

Additional Data

Vibration Test: 5G @ 1 axis

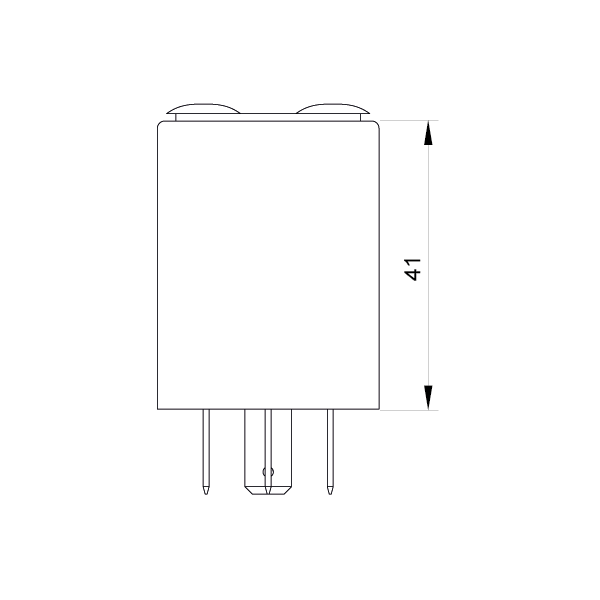

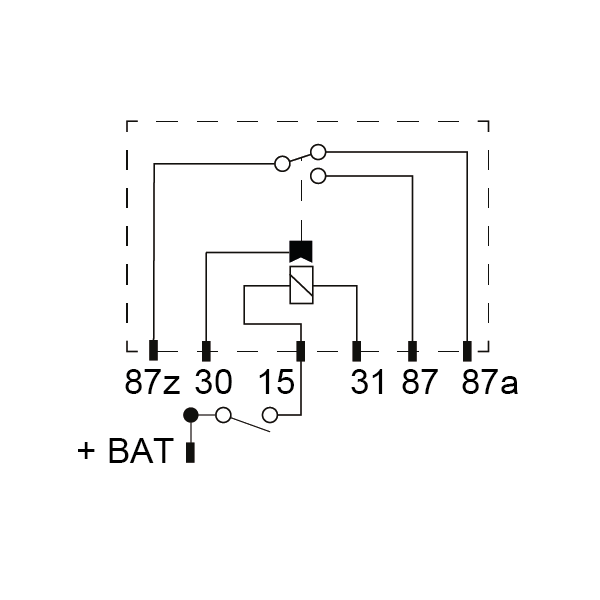

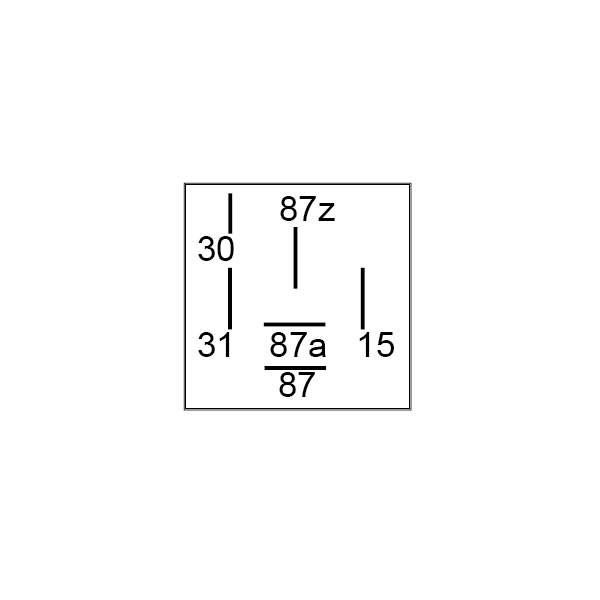

Terminals Assignment: ISO 7588-3 ISO 8092
In Conformity with: ISO7588 DIN46244 ISO 8092
Terminals Assignment Terminal Number Assignmet: ISO 8092-1
Salt Spray Test: 96h
Homologation Number: 10R-02 0100
Company IMDS: 75948
