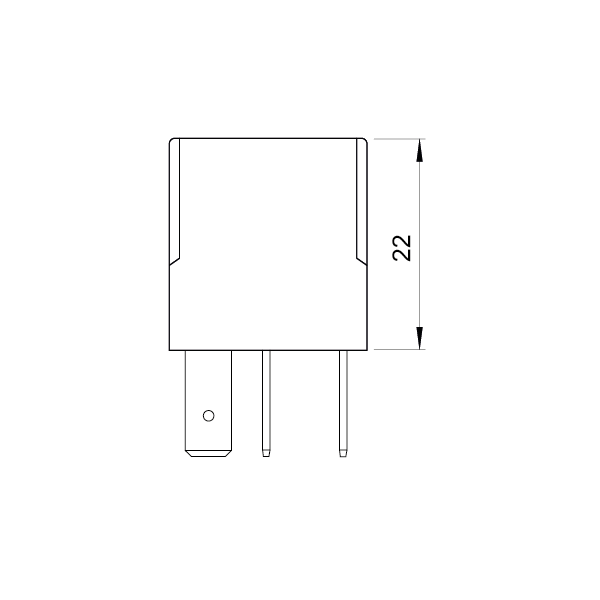

Nanorelay - N.20.405.101.A1

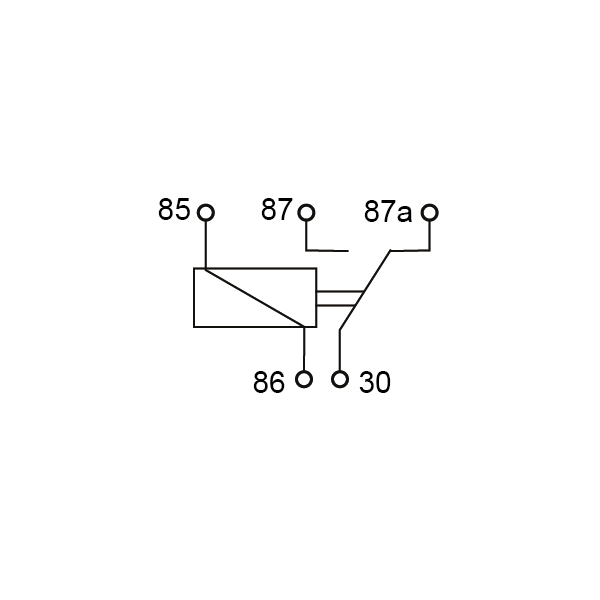

SPDT/Change Over C.O.

Coil Data

Operating Voltage: 18 ÷ 30V
Coil Resistance: 360Ω ± 10%
Release Voltage: ≥ 3V
Rated Voltage: 24V DC
Operating Voltage: ≤ 18V DC @ 23°C ≤ 20V DC @ 80°C
Num Terminals: 5

Contacts Data

Contacts Arrangement: SPDT/Change Over
Max Continuous Current: 20A @ 23°C 15A @ 85°C
Contacts Voltage Drop: ≤ 50mV @ 23°C
Mechanical Lifetime: 1.000.000 cycles
Electrical Lifestime: 100.000 cycles @ 15A 2"ON / 2"OFF
Contacts Operate Time: ≤ 18ms
Diode Presence: Not
Resistor Presence: Not
Release Time: ≤ 10ms @ 23°C
Insulation Resistance: 50MΩ
Operate Time: ≤ 10ms @ 23°C
Rated Current: 10A (4) / 15A (5)
Minimum Recommended Current: 0,5A
Contacts Gap: ≥ 0,6mm


Degree Protection: IP 66 DIN40050

Other Data

Storage Temperature: -45°C ± +110°C
Flammability: UL94-HB
Dielettric Strenght: 600V AC
Connection: Quick Connected Terminals
Operating Temperature: -40°C ± +85°C
Test Temperature: + 23°C


Housing: PA 66 GF25
Moving Contact: AgSnO₂
Bobbin Wire: 2 EUW / 155° D. 0,085
Bobbin Structure: PA 66 GF25
Baseplate: PA 6,6 GF25
Fixed Contact: AgSnO₂
Terminals: CuZn 37
Terminal Treatment: Sn 5µm

Additional Data

Vibration Test: 5G @ 1 axis

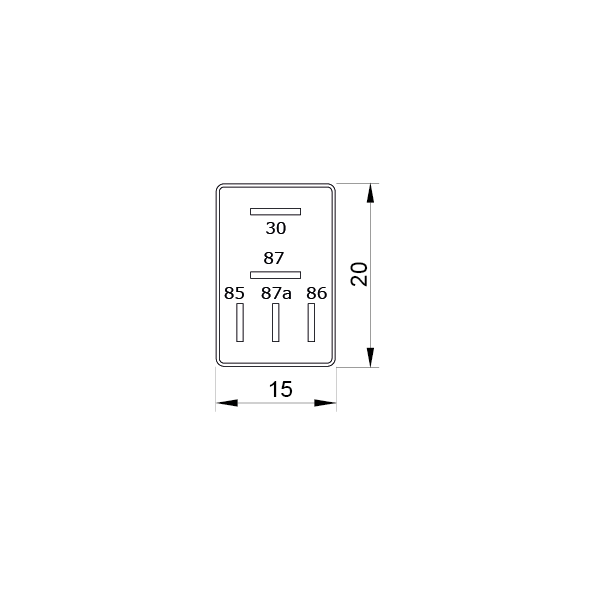

Terminals Assignment: ISO 7588 | ISO 8092
In Conformity with: ISO7588 | DIN46244 | ISO 8092 | IEC 60529 | EU Dir. 2002/95/EC RoHS

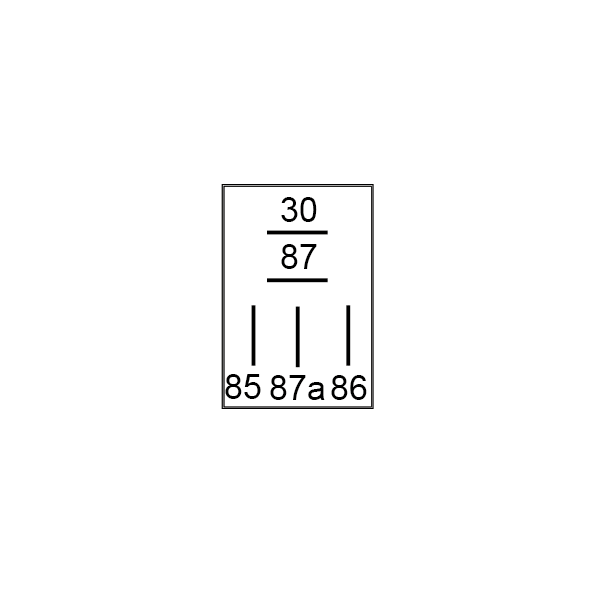

Terminals Assignment Terminal Number Assignmet: ISO 7588 | ISO 8092
Salt Spray Test: 96h
Homologation Number: 10R-02 7385
Company IMDS: 75948
