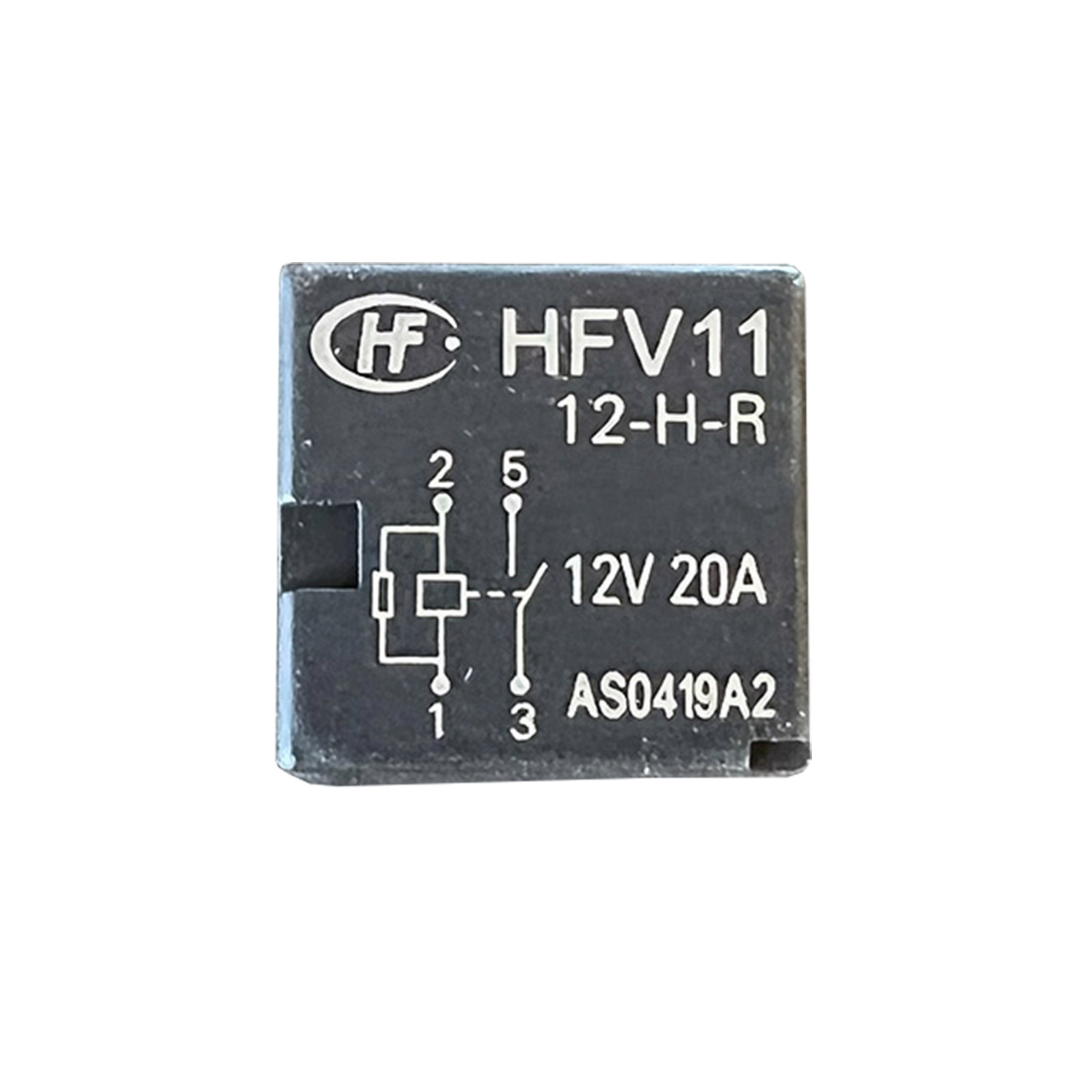

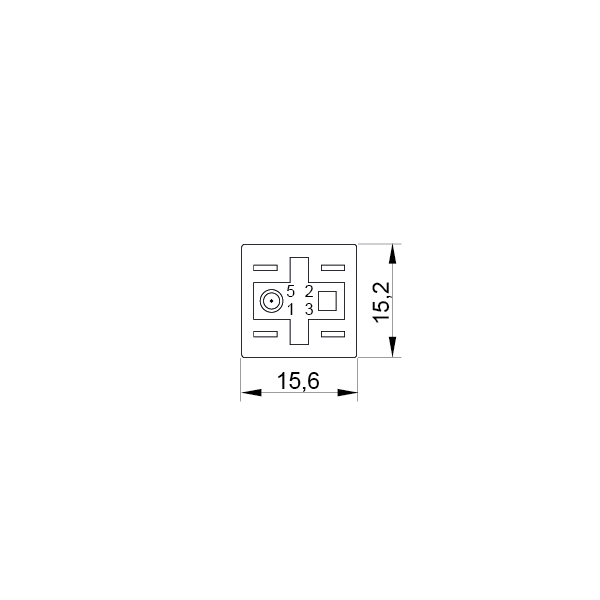

Nanorelay N.O. with flat terminal + Resistor – M.1R.204.SC.A1

Home / Micro Nano Relays / Nano Relays / Nanorelay N.O. with flat terminal + Resistor – M.1R.204.SC.A1

SPST/ Normally Open N.O. with flat terminal + Resistor

COIL DATA

Coil Resistance: 90Ω ± 10%

Num. Terminals: 4

Pull - In Voltage: ≤ 9V DC @ 23°C ≤ 10V DC @ 80°C

Rated Voltage: 12V DC

Release Voltage: ≥ 1,5V

Operating Voltage: 9 ÷ 18V

CONTACTS DATA

Rated Current On The Contacts: 25A

Release Time: ≤ 5ms @ 23°C

Resistor Presence: YES

Operate Time: ≤ 10ms @ 23°C

Insulation Resistance: 100MΩ

Max Continuous Current: 20A @ 23°C 30A @ 85°C

Mechanical Lifetime: 1.000.000 cycles

Minimum Recommended Current: 0,5A

Contacts Arrangement: SPST/Normally Open

Contacts Voltage Drop: ≤ 50mV @ 23°C

Diode Presence: NOT

Electrical Lifestime: 100.000 cycles @ 25A 2"ON / 2"OFF

PROTECTIONS

Degree Protection: IP 66 DIN40050

OTHER DATA

Connection: Quick Connected Terminals

Dielettric Strenght: 600V AC

Operating Temperature: -40°C ÷ 85°C

Storage Temperature: -45°C ÷ 110°C

Test Temperature: + 23°C

MATERIALS

Resistor Material: Carbon Film

Suppression Resistance : 1000Ω ± 5% (1/4W)

Terminal Treatment: Sn 5µm

Terminals: CuZn 37

Relay Contacts: AgSnO₂

Equivalent Resistor: 82Ω ± 10%

Housing: PA 66 GF25

Baseplate: PA 66 GF25

ADDITIONAL DATA

Company IMDS: 75948

In Conformity with: ISO7588 | DIN46244 | ISO 8092 | IEC 60529 | EU Dir. 2002/95/EC RoHS

Salt Spray Test (ISO 16750-3): 96h @ 5% NaCl

Terminals Assignment/Terminal Number Assignmet: ISO 7588 | ISO 8092

PACKAGING

Packing Options: 1pc/30pcs/200pcs

Anchor | Bracket: Without Bracket

WEIGHT

Single Net Weight: 20g
