ZDHK-09HSNG
COIL DATA
Release Voltage: 0,9V DC @ 23°C
Operate Voltage: 10,8V DC @ 23°C
Num. Terminals: 4P
Rated Voltage: 9V DC
Coil Power: 1.4W
Coil Resistance: 58Ω
CONTACTS DATA
Contact Resistance: 100mΩ (1A 6VDC)

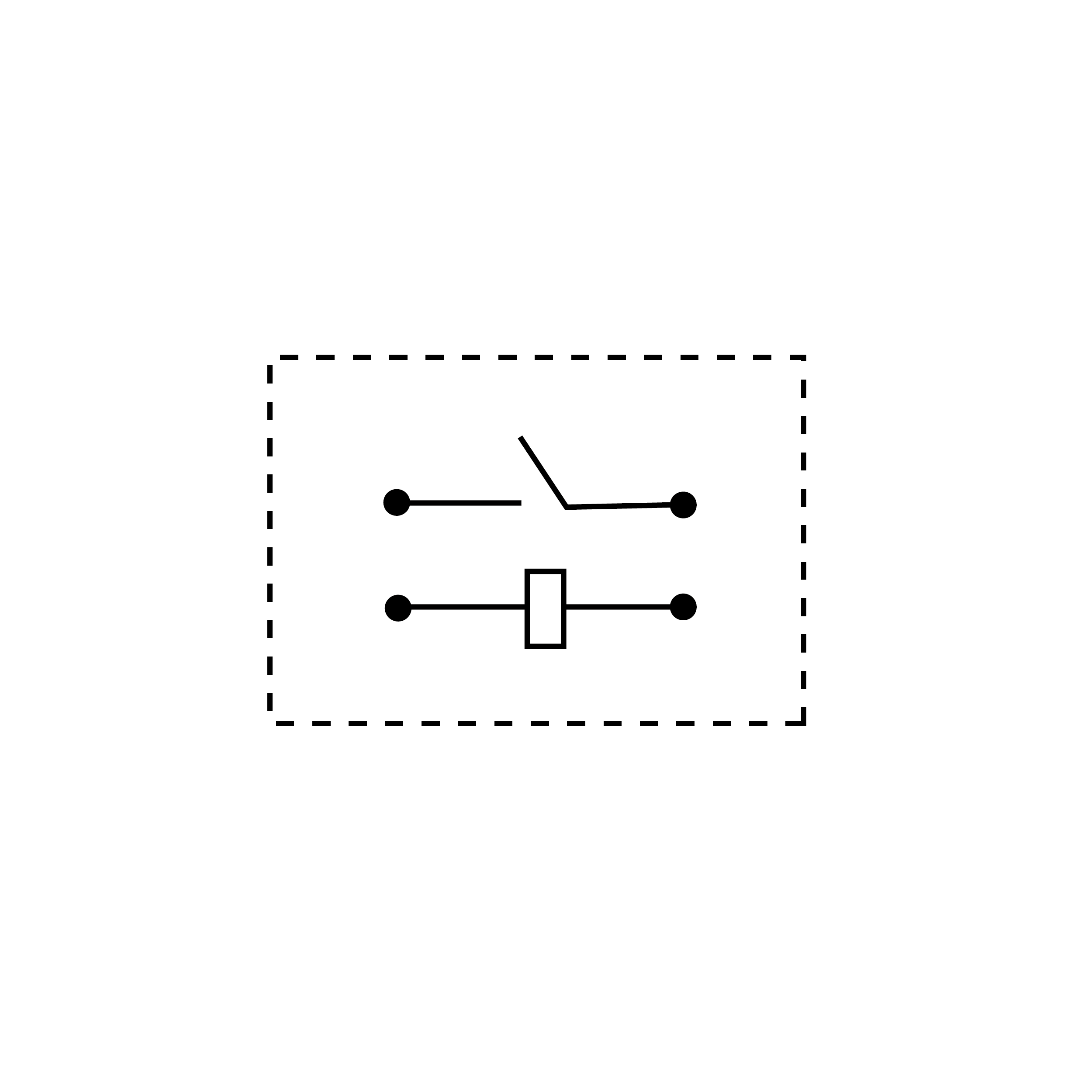

Contacts Arrangement: 1H (NO/SPST)
Electrical Lifestime: 3x104OPS(30 OPS/min)
Insulation Resistance: 100MΩ (500VDC)
Max Continuous Current: 26A
Max Switching Current: 31A
Mechanical Lifetime: 1X105OPS (300PS/min)
Release Time: 10ms
Rated Current On The Contacts: 26A 250VAC
Operate Time: 20ms
OTHER DATA
Dielectric Strength Between Open Contacts: 2500VAC 1 min.
Dielettric Strenght: 4500VAC 1 min.
Operating Temperature: -40°C to 85°C
MATERIALS
Terminals: Silver Alloy
ADDITIONAL DATA
Cross Reference: HF161F-W/-009-HT
Vibration Test (ISO 16750-3): 10HZ to 55HZ 1.5mm Double amplitude
PACKAGING
MOQ: 2000
Anchor | Bracket: NO
WEIGHT
Single Net Weight: ≈18.7g
