ZDHA-9HPS
COIL DATA
Release Voltage: 0,9V DC @ 23°C
Operate Voltage: 6,75V DC @ 23°C
Num. Terminals: 4P
Rated Voltage: 9V DC
Coil Power: 0,2W
Coil Resistance: 405Ω
CONTACTS DATA
Contact Resistance: 100mΩ(1A 6VDC)

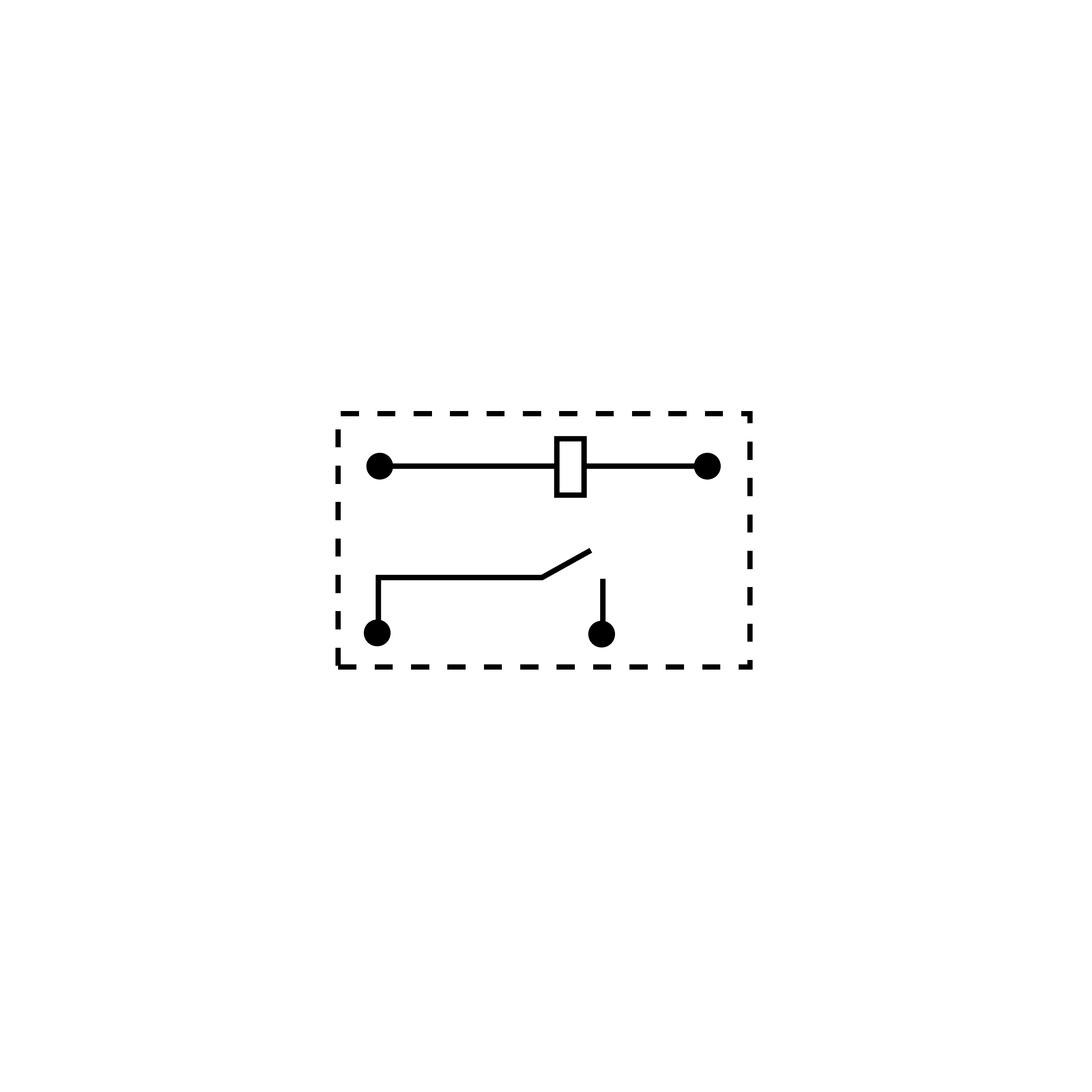

Contacts Arrangement: 1H (NO/SPST)
Electrical Lifestime: 1x105OPS(6 OPS/min)
Insulation Resistance: 100MΩ (500VDC)
Max Continuous Current: 16A
Max Switching Current: 16A
Mechanical Lifetime: 1X107OPS (300OPS/min)
Release Time: 5ms
Rated Current On The Contacts: 16A 250VAC
Operate Time: 15ms
OTHER DATA
Dielectric Strength Between Open Contacts: 1000VAC 1 min.
Dielettric Strenght: 2500VAC 1 min.
Operating Temperature: -40°C to 105°C
MATERIALS
Terminals: Silver Alloy
ADDITIONAL DATA
Cross Reference: HF7520/009-HSTP
Vibration Test (ISO 16750-3): 10HZ to 55HZ 1.5mm Double amplitude
PACKAGING
MOQ: 2000
Anchor | Bracket: NO
WEIGHT
Single Net Weight: ≈14g
