ZDHE-112HPSL
COIL DATA
Release Voltage: 1,2V DC @ 23°C
Operate Voltage: 9V DC @ 23°C
Num. Terminals: 5P
Rated Voltage: 12V DC
Coil Power: 0,36W
Coil Resistance: 400Ω
CONTACTS DATA
Contact Resistance: 100mΩ（1A 6VDC)

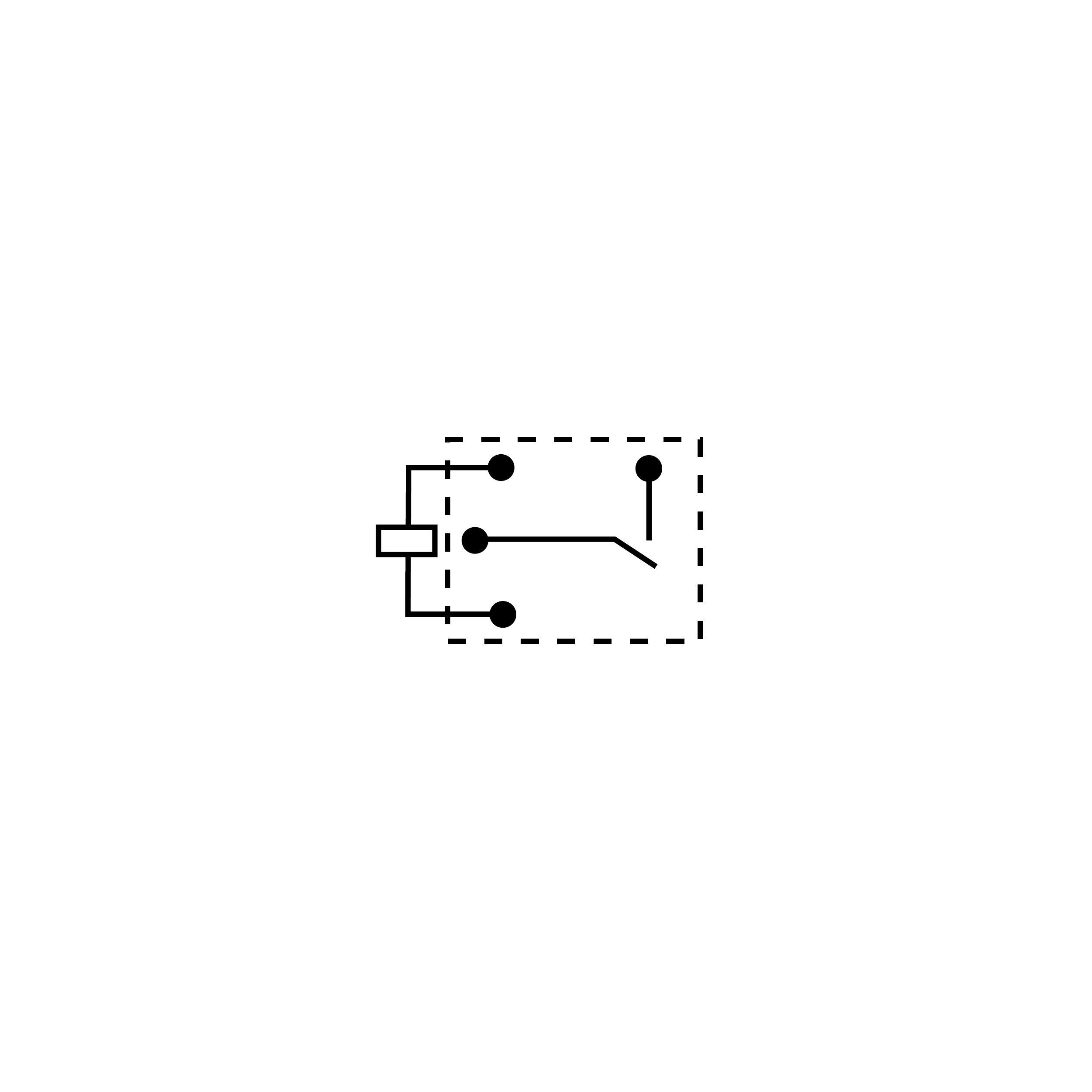

Contacts Arrangement: 1H (NO/SPST)
Electrical Lifestime: 1x105OPS(6 OPS/min)
Insulation Resistance: 100MΩ （500VDC）
Max Continuous Current: 17A
Max Switching Current: 20A
Mechanical Lifetime: 1X107OPS (300PS/min)
Release Time: 5ms
Rated Current On The Contacts: 17A 250VAC
Operate Time: 10ms
OTHER DATA
Dielectric Strength Between Open Contacts: 1000VAC 1 min.
Dielettric Strenght: 2500VAC 1 min.
Operating Temperature: -40°C to 105°C
MATERIALS
Terminals: Silver Alloy
ADDITIONAL DATA
Cross Reference: HF152F/012-1HPSTQ
Vibration Test (ISO 16750-3): 10HZ to 55HZ 1.5mm Double amplitude
PACKAGING
MOQ: 2000
Anchor | Bracket: NO
WEIGHT
Single Net Weight: ≈14g
