ZDHB-9ZSN

Power relay 5P 9V 10A 0.45W NO/NC Plastic sealed – ZDHB-9ZSN

Home / PCB Relays / PCB Power Relays / Power relay 5P 9V 10A 0.45W NO/NC Plastic sealed – ZDHB-9ZSN

COIL DATA

Release Voltage: 0,9V DC @ 23°C

Rated Voltage: 9V DC

Operate Voltage: 6,8V DC @ 23°C

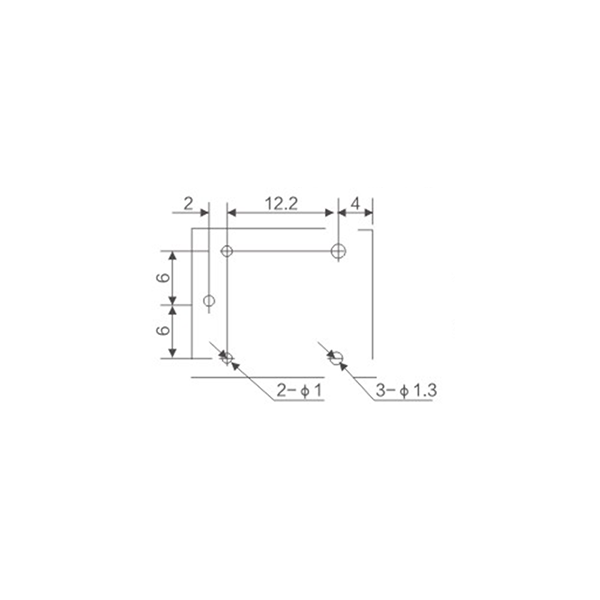

Num. Terminals: 5P

Coil Power: 0,45W

Coil Resistance: 180Ω

CONTACTS DATA

Contact Resistance: 100mΩ(1A 6VDC)

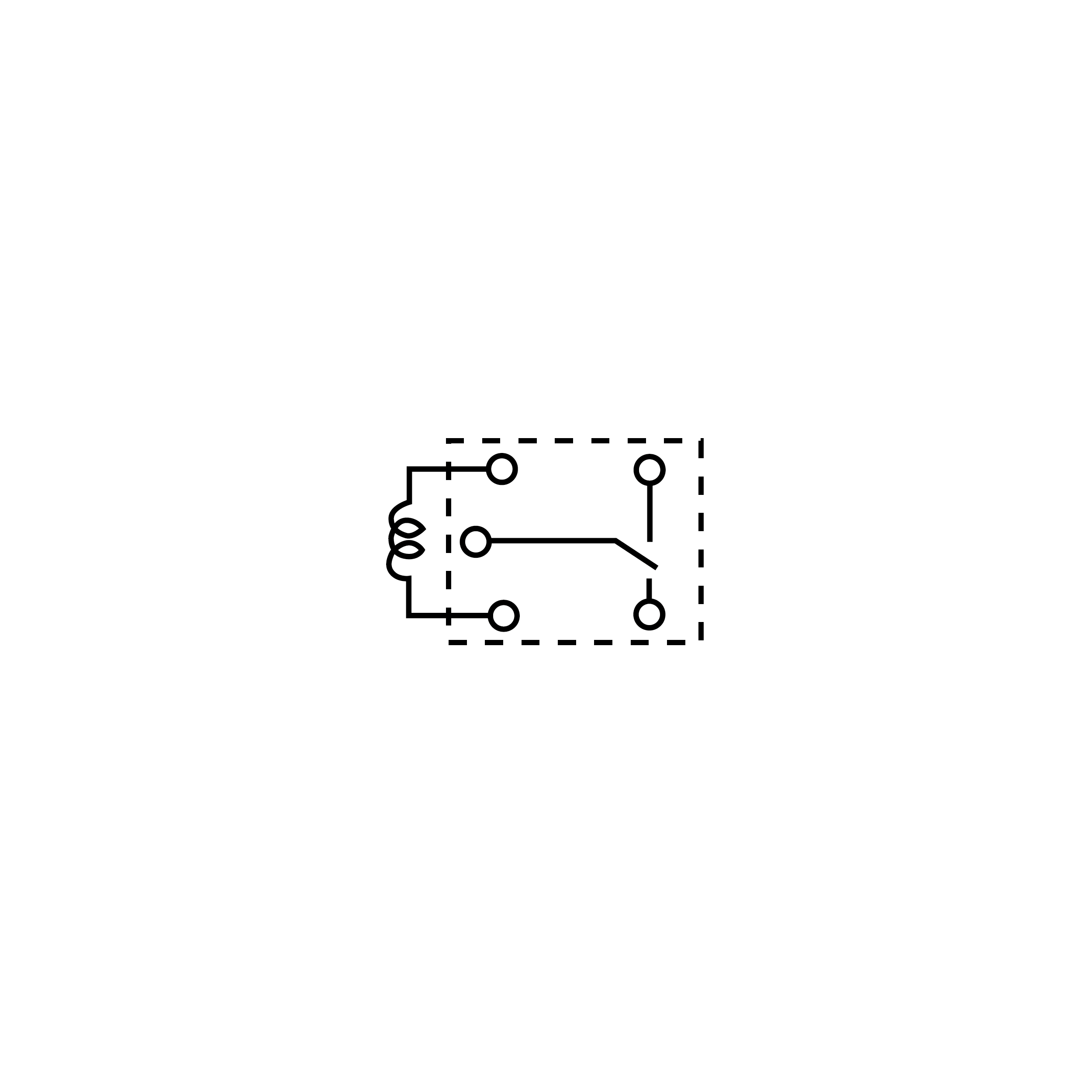

Contacts Arrangement: 1Z (CO/SPDT)

Insulation Resistance: 100MΩ (500VDC)

Max Continuous Current: 10A

Max Switching Current: 10A

Mechanical Lifetime: 1X107OPS (300 OPS/min)

Operate Time: 10ms

Electrical Lifestime: 1x105OPS(30 OPS/min)

Rated Current On The Contacts: 10A 250VAC

Release Time: 5ms

OTHER DATA

Dielectric Strength Between Open Contacts: 750VAC 1 min.

Dielettric Strenght: 1500VAC 1 min.

Operating Temperature: -40°C to 105°C

MATERIALS

Terminals: Silver Alloy

ADDITIONAL DATA

In Conformity with: CQC

Cross Reference: HF21FF/-xx

Vibration Test (ISO 16750-3): 10HZ to 55HZ 1.5mm Double amplitude

PACKAGING

MOQ: 2000

Anchor | Bracket: NO

WEIGHT

Single Net Weight: ≈11g
