Programmed Timer Relay – T.35.205.T1M

Home / Timer Relays  / Pre-Set Programmed Timer Relays  / Programmed Timer Relay – T.35.205.T1M

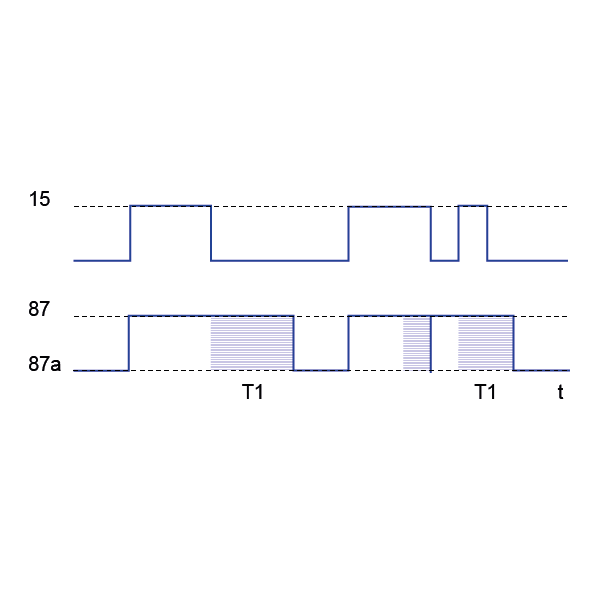

Delay OFF Falling Input Timer Relay With Reset


Coil Resistance: 90Ω ± 10%

Num. Terminals: 5

Operate Voltage: ≤ 9V DC

Operating Voltage: 9 ÷ 15 V

Rated Load: 20A (87) /25A (87a)

Rated Voltage: 12V DC

Release Voltage: Max 75V DC


Rated Current On The Contacts: 25A

Mechanical Lifetime: 1.000.000 cycles

Electrical Lifestime: 200.000 cycles

Contacts Arrangement: SPDT/Change Over


Degree Protection: IP 54 DIN40050


Connection: Quick Connected Terminals

Flammability: UL94-HB

Operating Temperature: -40°C ÷ +85°C

Storage Temperature: -45°C ÷ 110°C

Test Temperature: + 23°C


Terminal Treatment: Sn 5µm

Terminals: Cu Zn Sn

Fixed Contact: AgSnO₂

Housing: PA 66 GF25

Metal Bracket: Steel CK67

Moving Contact: AgSnO₂

Baseplate: PA 66 GF25

Bobbin Wire: 12V P155 IEC60317


Homologation Number: 10R-04 1193

Company IMDS: 75948

In Conformity with: ISO7588 DIN46244 ISO 8092

Vibration Test (ISO 16750-3): 5G @ 1 axis

Terminals Assignment: ISO 7588-3 ISO 8092

Terminals Assignment/Terminal Number Assignmet: ISO 8092-1

Salt Spray Test (ISO 16750-3): 96h


Packing Options: 1pcs/30pcs/300pcs

Anchor | Bracket: Included


Single Net Weight: 30g
