T.37.405.T1.T2

Programmed Timer Relay – T.37.405.T1.T2

Home / Timer Relays  / Pre-Set Programmed Timer Relays  / Programmed Timer Relay – T.37.405.T1.T2

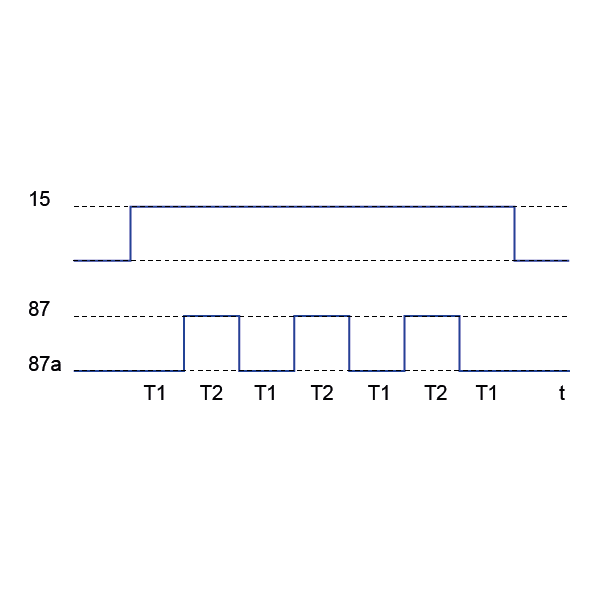

Flip-Flop Negative Timer Relay

COIL DATA

Coil Resistance: 360Ω ± 10%

Num. Terminals: 5

Operate Voltage: ≤ 18V DC

Operating Voltage: 18 ÷ 30V

Rated Load: 10A (87) /15A (87a)

Rated Voltage: 24V DC

Release Voltage: Max 75V DC

CONTACTS DATA

Rated Current On The Contacts: 15A

Mechanical Lifetime: 1.000.000 cycles

Electrical Lifestime: 200.000 cycles

Contacts Arrangement: SPDT/Change Over

PROTECTIONS

Degree Protection: IP 54 DIN40050

OTHER DATA

Connection: Quick Connected Terminals

Flammability: UL94-HB

Operating Temperature: -40°C ÷ +85°C

Storage Temperature: -45°C ÷ 110°C

Test Temperature: + 23°C

MATERIALS

Terminal Treatment: Sn 5µm

Terminals: Cu Zn Sn

Fixed Contact: AgSnO₂

Housing: PA 66 GF25

Metal Bracket: Steel CK67

Moving Contact: AgSnO₂

Baseplate: PA 66 GF25

Bobbin Wire: 12V P155 IEC60317

ADDITIONAL DATA

Homologation Number: 10R-04 1193

Company IMDS: 75948

In Conformity with: ISO7588 DIN46244 ISO 8092

Vibration Test (ISO 16750-3): 5G @ 1 axis

Terminals Assignment: ISO 7588-3 ISO 8092

Terminals Assignment/Terminal Number Assignmet: ISO 8092-1

Salt Spray Test (ISO 16750-3): 96h

PACKAGING

Packing Options: 1pcs/30pcs/300pcs

Anchor | Bracket: Included

WEIGHT

Single Net Weight: 30g
