T.38.405.T1.T2

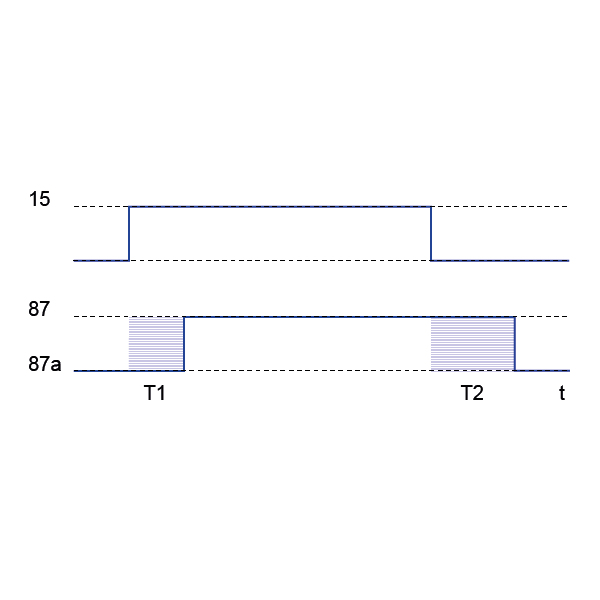

Delay ON and Delay OFF Timer Relay
COIL DATA
Coil Resistance: 360Ω ± 10%
Num. Terminals: 5
Operate Voltage: ≤ 18V DC
Operating Voltage: 18 ÷ 30V
Rated Load: 10A (87) /15A (87a)
Rated Voltage: 24V DC
Release Voltage: Max 75V DC
CONTACTS DATA
Rated Current On The Contacts: 15A
Mechanical Lifetime: 1.000.000 cycles
Electrical Lifestime: 200.000 cycles
Contacts Arrangement: SPDT/Change Over
PROTECTIONS
Degree Protection: IP 54 DIN40050
OTHER DATA
Connection: Quick Connected Terminals
Flammability: UL94-HB
Operating Temperature: -40°C ÷ +85°C
Storage Temperature: -45°C ÷ 110°C
Test Temperature: + 23°C
MATERIALS
Terminal Treatment: Sn 5µm
Terminals: Cu Zn Sn
Fixed Contact: AgSnO₂
Housing: PA 66 GF25
Metal Bracket: Steel CK67
Moving Contact: AgSnO₂
Baseplate: PA 66 GF25
Bobbin Wire: 12V P155 IEC60317
ADDITIONAL DATA
Homologation Number: 10R-04 1193
Company IMDS: 75948
In Conformity with: ISO7588 DIN46244 ISO 8092
Vibration Test (ISO 16750-3): 5G @ 1 axis
Terminals Assignment: ISO 7588-3 ISO 8092
Terminals Assignment/Terminal Number Assignmet: ISO 8092-1
Salt Spray Test (ISO 16750-3): 96h
PACKAGING
Packing Options: 1pcs/30pcs/300pcs
Anchor | Bracket: Included
WEIGHT
Single Net Weight: 30g
