Programmed Timer Relay – T.39.205.T1.T2

Home / Timer Relays  / Electronic Solution for Special Applications / Programmed Timer Relay – T.39.205.T1.T2

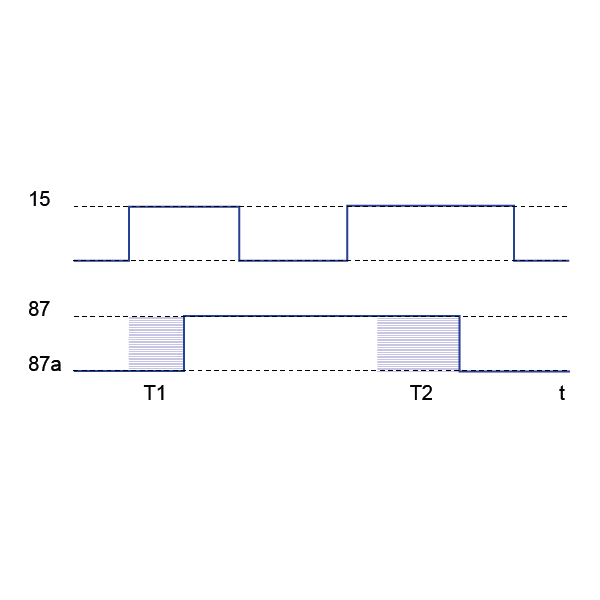

Timer Relay Delay Set/Delay Reset

Coil Data

Operating Voltage: 9 ÷ 15 V
Rated Load: 20A (87) /25A (87a)
Coil Resistance: 90Ω ± 10%
Release Voltage: Max 75V DC
Rated Voltage: 12V DC
Operating Voltage: ≤ 9V DC
Num Terminals: 5

Contacts Data

Contacts Arrangement: SPDT/Change Over
Mechanical Lifetime: 1.000.000 cycles
Electrical Lifestime: 200.000 cycles
Rated Current: 25A


Degree Protection: IP 54 DIN40050

Other Data

Storage Temperature: -45°C ± +110°C
Flammability: UL94-HB
Connection: Quick Connected Terminals
Operating Temperature: -40°C ± +85°C
Test Temperature: + 23°C


Metal Bracket: Steel CK67
Housing: PA 66 GF25
Moving Contact: AgSnO₂
Bobbin Wire: 12V P155 IEC60317
Baseplate: PA 6,6 GF25
Fixed Contact: AgSnO₂
Terminals: Cu Zn -Sn
Terminal Treatment: Sn 5µm

Additional Data

Vibration Test: 5G @ 1 axis
Terminals Assignment: ISO 7588-3 ISO 8092
In Conformity with: ISO7588 DIN46244 ISO 8092
Terminals Assignment Terminal Number Assignmet: ISO 8092-1
Salt Spray Test: 96h
Homologation Number: 10R-04 1193
Company IMDS: 75948
