O.1R.4W4.001.A1

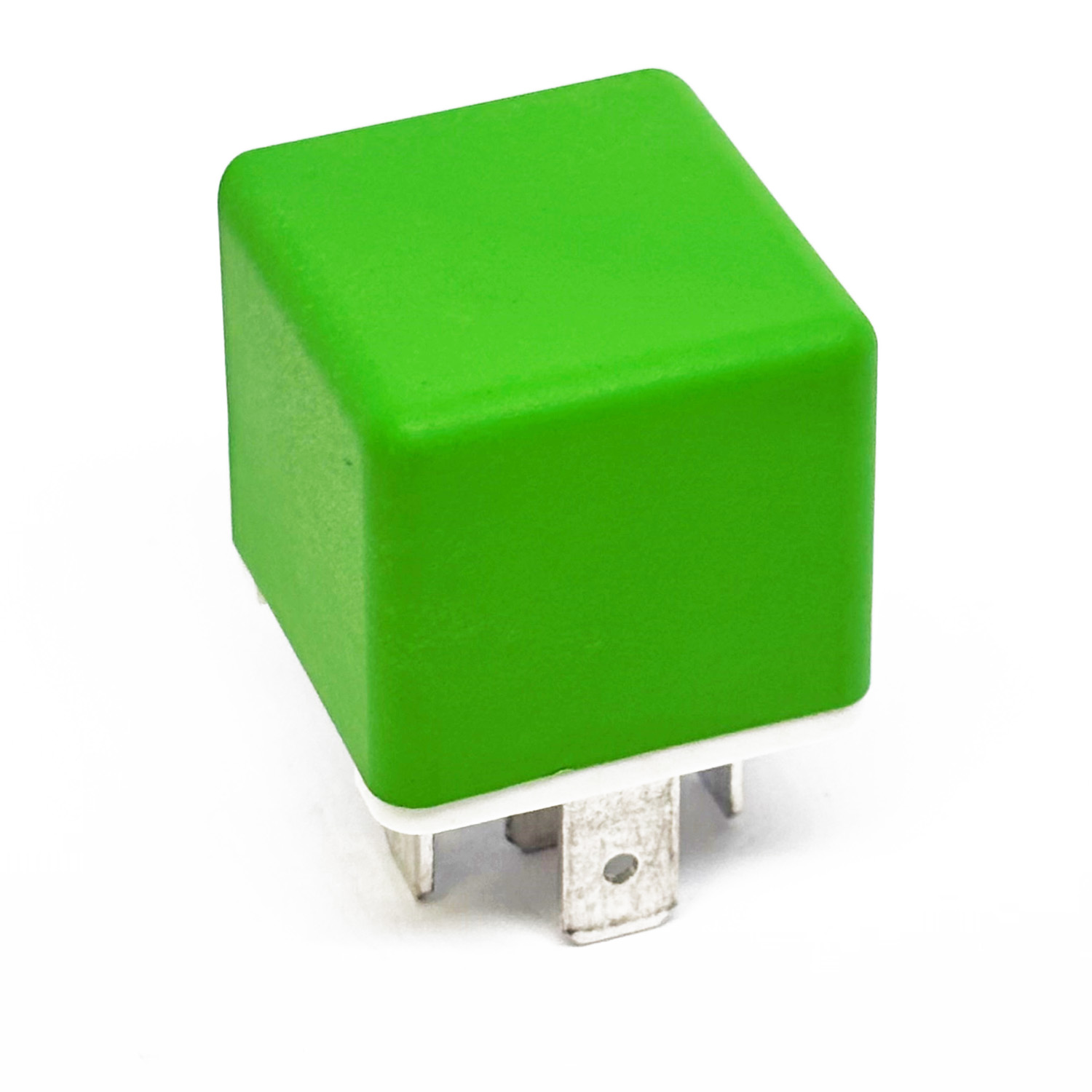

Relay N.O.|SPST 24V 4P 20A + Resistor with waterproof case and metal bracket – O.1R.4W4.001.A1

Home / Mini Relays up to 40A / Mini Relay N.O. & C.O. (IP66 - IP67) Water Resistant / Relay N.O.|SPST 24V 4P 20A + Resistor with waterproof case and metal bracket – O.1R.4W4.001.A1

Normally Open N.O. (IP67)

COIL DATA

Coil Resistance: 320Ω ± 8%

Num. Terminals: 4

Operate Voltage: 18 ÷ 30 V

Pull - In Voltage: ≤ 16V @23°C

Rated Voltage: 24V DC

Release Voltage: ≥ 2,4V @23°C

CONTACTS DATA

Resistor Presence: YES

Rated Current On The Contacts: 20A

Max Continuous Current: 45A @ 23°C - 30A @ 85°C

Max Switching Current: 70A

Diode Presence: NOT

Contacts Arrangement: SPST/Normally Open

PROTECTIONS

Degree Protection: IP 67

OTHER DATA

Connection: Quick Connected Terminals

Operating Temperature: -40°C ÷ 85°C

Test Temperature: + 23°C

MATERIALS

Terminals 30-87-87a: TiN Nickel plating H65Y2

Terminals 85-86: brass TN Nickel plating H62

Suppression Resistance : 2700Ω ± 5%

Return Spring: C5191

Iron Core: Nickel plating DT4E

Fixed Contact: AgSnO₂

Housing: PA 66 GF25

Moving Contact: AgSnO₂

Armature: Nickel plating DT4E

Baseplate: PA 66 GF25

ADDITIONAL DATA

In Conformity with: ISO7588 | DIN46244 | ISO 8092 | IEC 60529 | EU Dir. 2002/95/EC RoHS

Company IMDS: 75948

Salt Spray Test (ISO 16750-3): 96h @ 5% NaCl

Testing Voltage: 27V

Terminals Assignment/Terminal Number Assignmet: ISO 7588 | ISO 8092

PACKAGING

Packing Options: NOT

Anchor | Bracket: With Metal Bracket
