Relay Socket for micro relay – PR.M00.001

Home / Terminals & Holdings / Terminals & Holdings / Relay Socket for micro relay – PR.M00.001

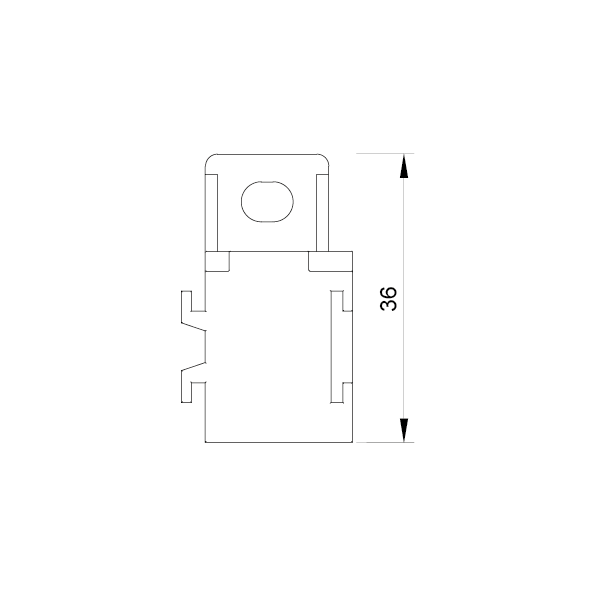

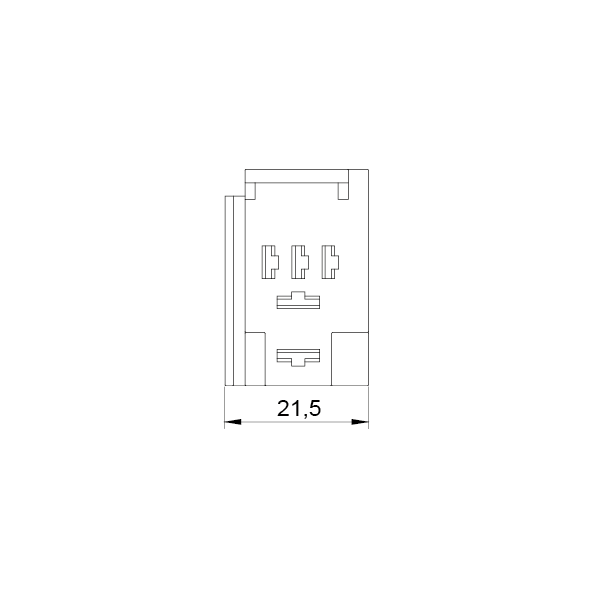

Relay Socket for micro relay

CONTACTS DATA

Mechanical Lifetime: 1.000.000 cycles

OTHER DATA

Connection: Quick Connected Terminals

Flammability: UL94-HB

Storage Temperature: -45°C ÷ 110°C

Test Temperature: + 23°C

MATERIALS

Housing: PA 66 GF25

ADDITIONAL DATA

In Conformity with: ISO7588 | DIN46244 | ISO 8092 | IEC 60529 | EU Dir. 2002/95/EC RoHS

Company IMDS: 75948

Terminals Assignment: ISO 7588 | ISO 8092

Terminals Assignment/Terminal Number Assignmet: ISO 7588 | ISO 8092

PACKAGING

Anchor | Bracket: With Bracket

Packing Options: 1pcs/30pcs/400pcs

WEIGHT

Single Net Weight: 20g
