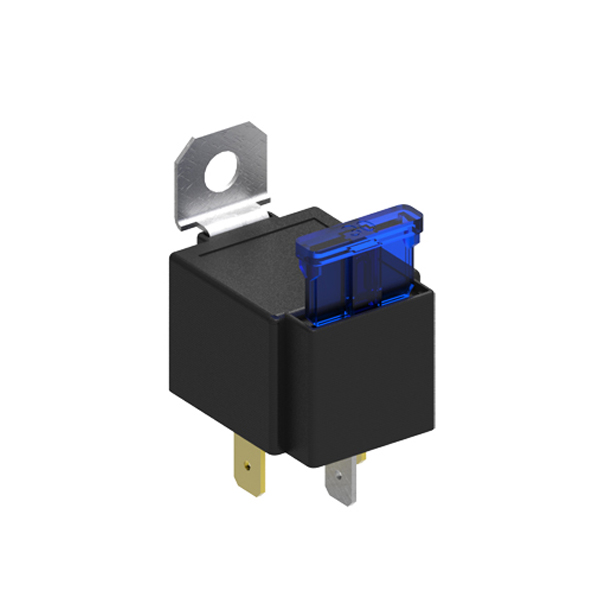

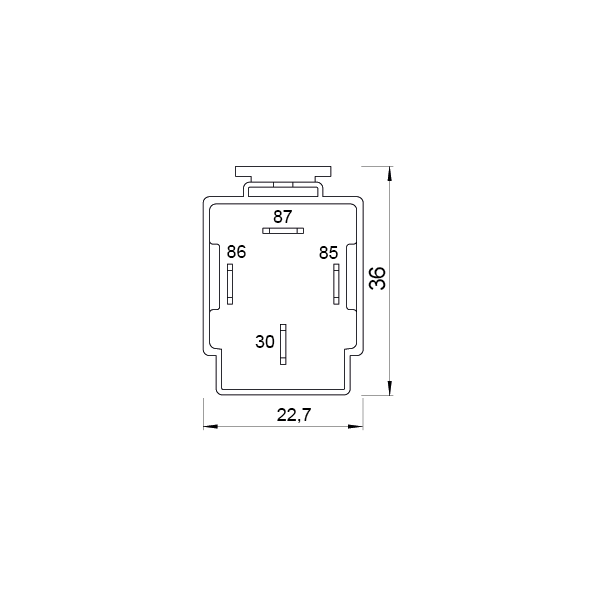

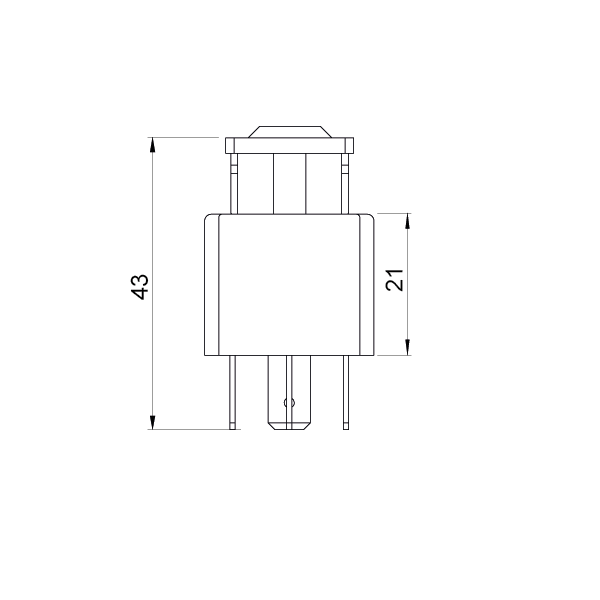

Relays with Fuse – 1FD.404.101.20.A1

Home / Mini Relays up to 40A / Mini Relay With Fuse / Relays with Fuse – 1FD.404.101.20.A1

Normally Open N.O.
with fuse

Coil Data

Operating Voltage: 20 ÷ 30 V
Rated Voltage: 24V DC
Num Terminals: 4
Relay Type: B

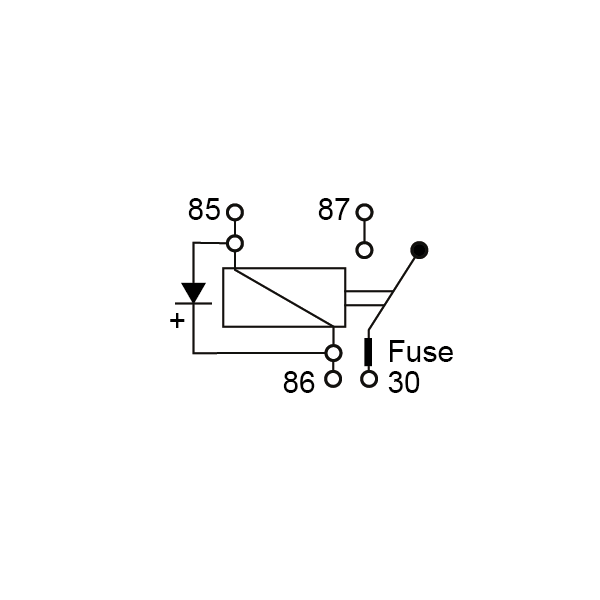

Contacts Data

Contacts Arrangement: SPST/Normally Open
Max Continuous Current: 20A @ 23°C 15A @ 85°C
Contacts Voltage Drop: ≤ 100mV @ 23°C
Mechanical Lifetime: 1.000.000 cycles
Electrical Lifestime: 100.000 cycles @ 20A 2"ON / 2"OFF
Contacts Operate Time: ≤ 15ms
Diode Presence: YES
Resistor Presence: Not
Release Time: ≤ 10ms @ 23°C
Insulation Resistance: 50MΩ
Operate Time: ≤ 10ms @ 23°C
Rated Current: 20A
Minimum Recommended Current: 0,5A
Contacts Gap: ≥ 0,8mm


Degree Protection: IP 54 DIN40050
Short Circuit Protection: Not Available
Reverse Polarity Protection: Available
IP Protection: Not Available
Over Voltage Protection: Not Available
Over Current Protection: Not Available

Other Data

Storage Temperature: -45°C ± +110°C
Flammability: UL94-HB
Dielettric Strenght: 600V DC
Connection: Quick Connected Terminals
Operating Temperature: -40°C ± +85°C
Test Temperature: + 23°C


Polarity: 85 to 86
Housing: PA 66 GF25
Moving Contact: AgSnO₂
Bobbin Wire: 2 EUW / 155° D. 0,085
Bobbin Structure: PA 66 GF25
Baseplate: PA 6,6 GF25
Fixed Contact: AgSnO₂
Terminals: CuZn37
Terminal Treatment: Cu Zn -Sn 5µm
Suppression Diode: 1000V 1A 1N4007
Spring: Stainless Steel 1Cr18Ni9TI
Soft Spring: Stainless Steel 1Cr18Ni9TI

Additional Data

Vibration Test: 5G @ 1 axis

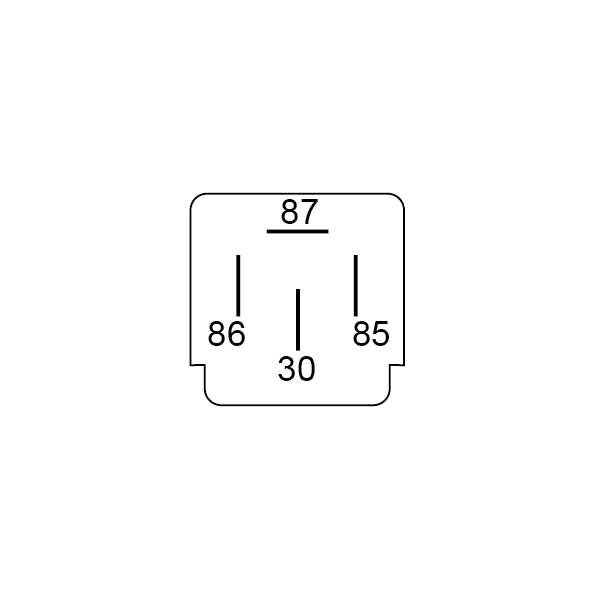

Terminals Assignment: ISO 7588 | ISO 8092
In Conformity with: ISO7588 | DIN46244 | ISO 8092 | IEC 60529 | EU Dir. 2002/95/EC RoHS
Terminals Assignment Terminal Number Assignmet: ISO 7588 | ISO 8092
Salt Spray Test: 96h
Homologation Number: 10R-02 7027
Company IMDS: 75948
