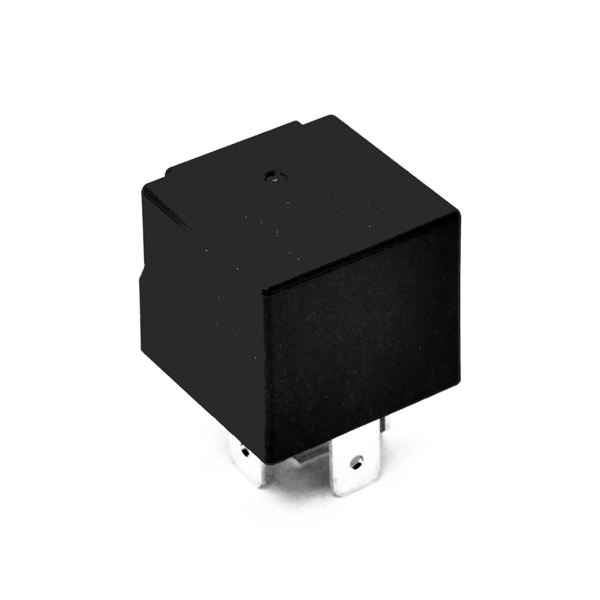

Twin Relay – O.80.404.001.A1

COIL DATA

Operating Voltage: 20 ÷ 30 V

Num. Terminals: 4x2

Rated Voltage: 24V DC

Relay Type: B

CONTACTS DATA

Release Time: ≤ 10ms @ 23°C

Resistor Presence: NOT

Rated Current On The Contacts: 2x20A

Operate Time: ≤ 10ms @ 23°C

Insulation Resistance: 50MΩ

Max Continuous Current: 20A @ 23°C - 15A @ 85°C

Mechanical Lifetime: 1.000.000 cycles

Minimum Recommended Current: 0,5A

Diode Presence: NOT

Electrical Lifestime: 100.000 cycles @ 30A 2"ON / 2"OFF

Contact Gap: ≥ 0,8mm

Contacts Arrangement: SPST/Normally Open

Contacts Operate Time: ≤ 15ms

Contacts Pressure: 1,2N

Contacts Voltage Drop: ≤ 100mV @ 23°C

PROTECTIONS

Short Circuit Protection: Not Available

Degree Protection: IP 54 DIN40050

IP Protection: Not Available

Reverse Polarity Protection: Not Available

Over Current Protection: Not Available

Over Voltage Protection: Not Available

OTHER DATA

Connection: Quick Connected Terminals

Dielettric Strenght: 600V DC

Flammability: UL94-HB

Operating Temperature: -40°C ÷ +85°C

Storage Temperature: -45°C ÷ 110°C

Test Temperature: + 23°C

MATERIALS

Soft Spring: CuSnC5191

Spring: Stainless Steel 1Cr18Ni9TI

Terminal Treatment: Available on demand

Terminals: CuZn 37

Moving Contact: AgSnO₂

Fixed Contact: AgSnO₂

Housing: PA 66 GF25

Baseplate: PA 66 GF25

Bobbin Wire: 2 EUW / 155° D. 0,085

ADDITIONAL DATA

Company IMDS: 75948

Homologation Number: 10R-02 7027

In Conformity with: ISO7588 | DIN46244 | ISO 8092 | IEC 60529 | EU Dir. 2002/95/EC RoHS

Vibration Test (ISO 16750-3): 5G @ 1 axis

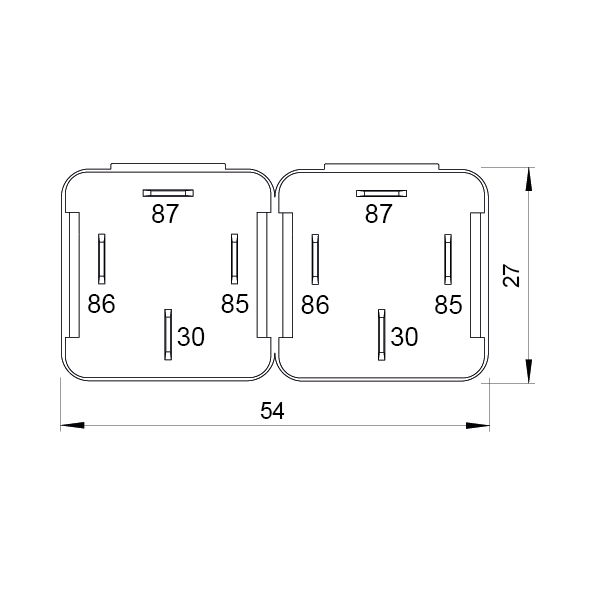

Terminals Assignment: ISO 7588 | ISO 8092

Terminals Assignment/Terminal Number Assignmet: ISO 7588 | ISO 8092

Salt Spray Test (ISO 16750-3): 96h

PACKAGING

Packing Options: 1pcs/12pcs/200pcs

Anchor | Bracket: With Plastic Bracket

WEIGHT

Single Net Weight: 35g
