The LED Light Link is a device that facilitates the conversion and synchronisation of a circuit made up of new LED indicators, regardless of the electronics on board.

This device is the ideal solution when facing the problem of converting from a traditional 21W direction circuit to a new one that uses LED technology with the impossibility of replacing the flashing light on board or simply not knowing if this electronic part complies with the requirements for regulation 13207-1.

More emblematically, when it is necessary to add to the vehicle, for example, a trailer with LED indicators, but unfortunately you do not known exactly whether the on-board flashing light (or the CPU) complies with the standards that regulate diagnostics in LED technology: the LED Light Link thus makes the trailer – or simply the vehicle’s direction circuit that uses LED turn signals – effectively universal so that it can be coupled to any tractor regardless of the electronics on board.

It is simply necessary to install one LED Light Link per side for each pair of LED turn signals.

If the LED turn signal is working (with power greater than 1W) a temporary resistor will light up. In addition, in the event that the LED turn signal breaks down (with power less than 1W), the resistor turns off, thus activating the fault signal to the flashing light on-board or to any CPU.

The device integrates the system for the detection of trailers connected to tractors equipped with ECU according to the recent ISO 13207-1 standard.

Features

  • Double channel for left and right turn signal.
  • Electronics protected from infiltrations (IP67)
  • Aluminium casing with screw fixing
  • Low overheating

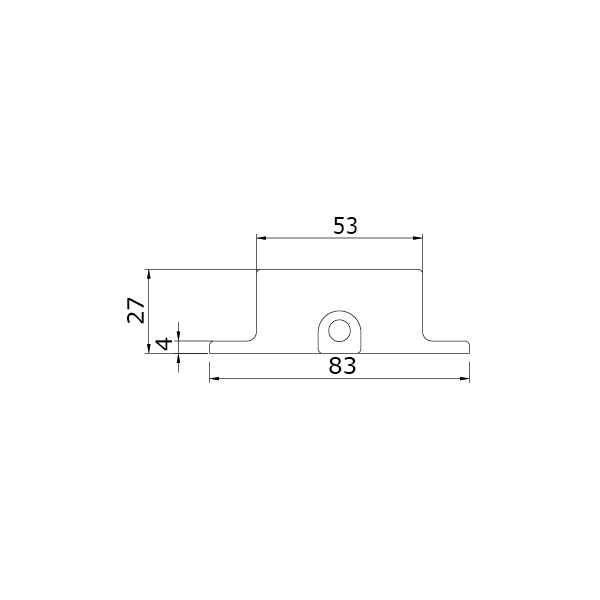

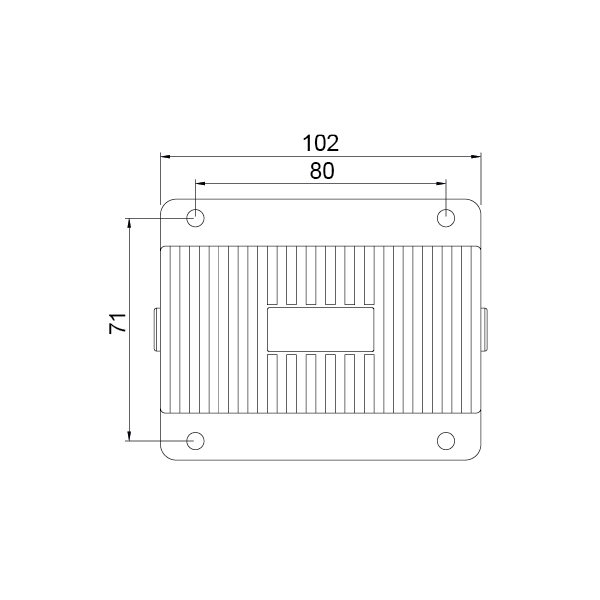

  • Small size, only 102 X 82 X 27mm
  • ADR cables (1,5 metres each side | 3×1.00 mm2)
  • Compliant with standard ISO 13207-1 par. 7.2 (tractors with ECU)

Advantages

  • Fault monitoring and reporting compatible with ECE R48 regulation
  • Compatible with any LED turn signal on the market
  • It does not require the replacement and/or reprogramming of the existing turn signal
  • Customisable connections on request
  • Quick and easy to install

12V and 24V versions are available.

Commercial Leaflet

Installation Instructions

Manual

Request for Technical Drawing / Extra Info for
"LED Light Link 12V – LLL.01.12V"

Enter the OEM, ODM or major distributors codes to search for your product

LLL.01.12V

LED Light Link 12V – LLL.01.12V

COIL DATA

Led Failure Threshold: ˂ 80mA @ rated voltage

No Failure Pulse Simulation: 2 x 21w resistor

Num. Terminals: 3

Operating Voltage: 9 ÷ 15 V

Output Regulated Voltage (W3-W4): 12V ± 0,2V DC

Cold Check Failure Detection: Available

Direction Indicator Range Power Rating: Min 1W @10V - Max 10W @ 15V

Rated Load: 2 X 21W

Rated Voltage: 12V DC

CONTACTS DATA

Electrical Lifestime: 200h Continuous

Electrical Lifetime in Hazard mode: 36h

PROTECTIONS

Reverse Polarity Protection: - 28V DC

Short Circuit Protection: Present

IP Protection: IP 67

OTHER DATA

Connection: Loose ADR Cables

Operating Temperature: -40°C ÷ 50°C

Diagnostics: Present, a failure warning

Storage Temperature: -40°C ÷ 110°C

Test Temperature: + 23°C

MATERIALS

Rubber Component: EPDM

Resin Compound: High Temp Heat Dissipation Resin UL94-V0 color RED

Housing: EN AB 46100 ALUMINIUM HEATSINK/SANDBLASTED

Cables: oflex truck 170 flryy /ADR Cable 3x1,00mm²

ADDITIONAL DATA

Preferential Origin: Made in Italy

In Conformity with: ISO 13207 "Led Lamp Characteristics for bulb compatible failure detection PART 1: Led lamps used as direction indicators"

Homologation Number: 10R-05 0031

Company IMDS: 75948

Salt Spray Test (ISO 16750-3): 96h @ 5% NaCl

PACKAGING

Packing Options: 1pcs/10pcs/35pcs

WEIGHT

Single Net Weight: 343g
