The LWL Relay Warning of Lights On is a device originally born as a warning light on, but over time it has found other applications such as the acoustic signal for door opening in buses, in signalling to the operator when the vehicle is not stable on the ground, risking overturning or when some lights remain on.
It is a simple and reliable acoustic device, all-in-one with built-in buzzer, both in continuous and intermittent mode.
The company in close contact with the customer is able to respond to specific needs by varying the software of the microprocessor on board the circuit so as to replicate the behaviour most useful to the needs of the installer.
These items have a metal bracket for fixing.
06.402.01
Intermittent sound
>100 dB-30 cm
COIL DATA
Operating Voltage: 18 ÷ 15V
Num. Terminals: 2
Rated Voltage: 24V DC
CONTACTS DATA
Rated Frequency: 3.800Hz ±5%
Sound Intensity @30cm: Min 85dB @24V
Tone Characteristics: Intermittent
Mechanical Lifetime: 1.000.000 cycles
Electrical Lifestime: 150h Continuous
PROTECTIONS
Short Circuit Protection: Not Available
Reverse Polarity Protection: Not Available
Degree Protection: IP 54 DIN40050
IP Protection: Not Available
Over Current Protection: Not Available
Over Voltage Protection: Not Available
OTHER DATA
Connection: Quick Connected Terminals
Flammability: UL94-HB
Flashing Frequency: 120 Times/ Minute ±20%
Operating Temperature: -30°C ÷ +70°C
Storage Temperature: -45°C ÷ 110°C
Test Temperature: + 23°C
MATERIALS
Terminals: Cu Zn
Housing: PA 66 GF25
Baseplate: PA 66 GF25
Bobbin Structure: PA 66 GF25
ADDITIONAL DATA
Homologation Number: E1 03 5317
In Conformity with: EU Dir. 2002/95/EC RoHS
Company IMDS: 75948
Salt Spray Test (ISO 16750-3): 96h

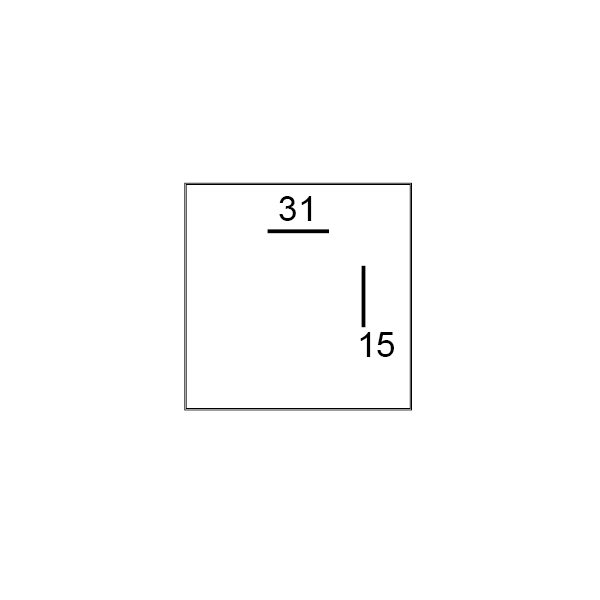

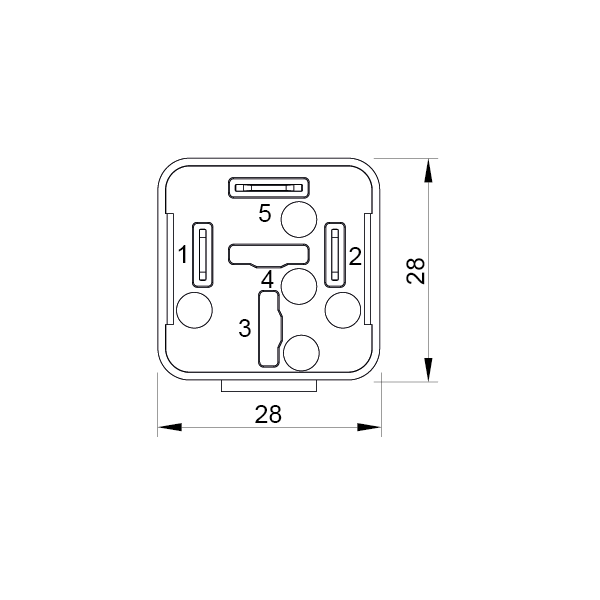

Terminals Assignment: ISO 8094
Terminals Assignment/Terminal Number Assignmet: ISO 7588-3
PACKAGING
Packing Options: 1pcs/30pcs/300pcs

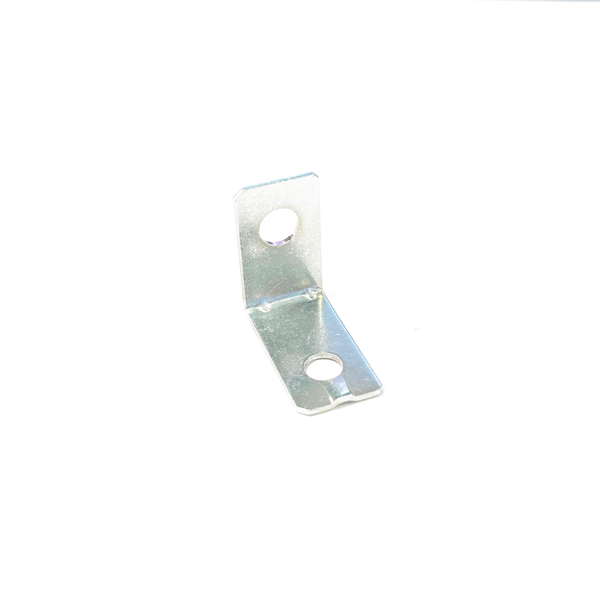

Anchor | Bracket: Included
WEIGHT
Single Net Weight: 20g
