Power relay 5P 5V 30A NC 0.9W Plastic sealed – ZD4115-S-B5L-5V

Home / PCB Relays / PCB Power Relays / Power relay 5P 5V 30A NC 0.9W Plastic sealed – ZD4115-S-B5L-5V

COIL DATA

Release Voltage: 0,5V DC @ 23°C

Rated Voltage: 5V DC

Operate Voltage: 3,75V DC @ 23°C

Num. Terminals: 5P

Coil Power: 0,9W

Coil Resistance: 27,8Ω

CONTACTS DATA

Contact Resistance: 100mΩ(1A 6VDC)

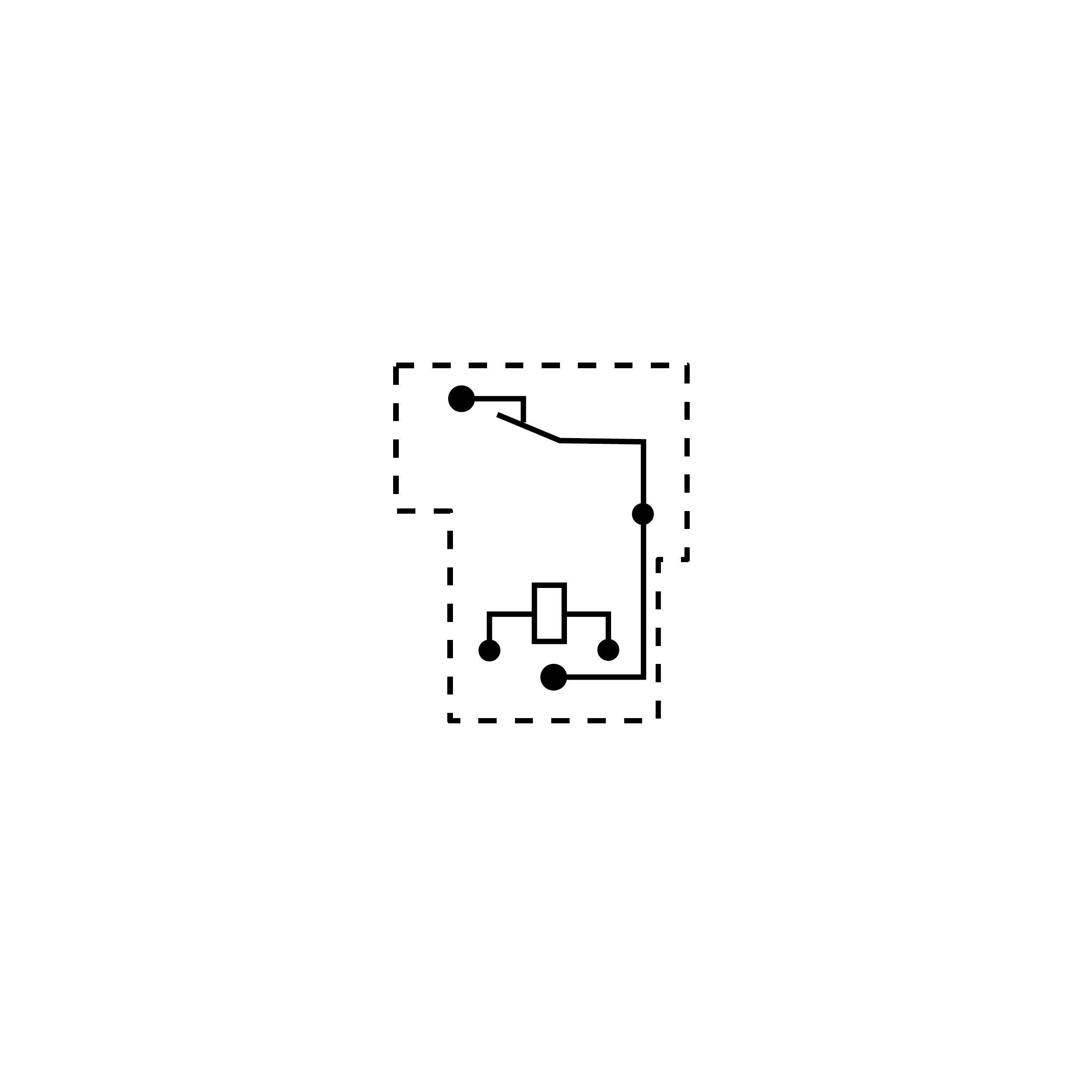

Contacts Arrangement: B (NC/SPST)

Insulation Resistance: 100MΩ (500VDC)

Max Continuous Current: 20A

Max Switching Current: 20A

Mechanical Lifetime: 1X107OPS (300PS/min)

Operate Time: 15ms

Electrical Lifestime: 1x105OPS(6 OPS/min)

Rated Current On The Contacts: 20A 250VAC

Release Time: 10ms

OTHER DATA

Dielectric Strength Between Open Contacts: 1500VAC 1 min.

Dielettric Strenght: 2500VAC 1 min.

Operating Temperature: -40°C to 105°C

MATERIALS

Terminals: Silver Alloy

ADDITIONAL DATA

In Conformity with: CQC TUV UL

Cross Reference: HF165FD/5-DY2ST

Vibration Test (ISO 16750-3): 10HZ to 55HZ 1.5mm Double amplitude

PACKAGING

MOQ: 2000

Anchor | Bracket: NO

WEIGHT

Single Net Weight: ≈25g
