Request for Technical Drawing / Extra Info for
"Relay SPDT Bistabile 12V Positive Signal – T.43.206.A1"

T.43.206.A1

Relay SPDT Bistabile 12V Positive Signal - T.43.206.A1

Coil Data

Operating Voltage: 10 ÷ 15 V
Rated Voltage: 12V DC
Operating Voltage: ≤ 9V DC @23°C

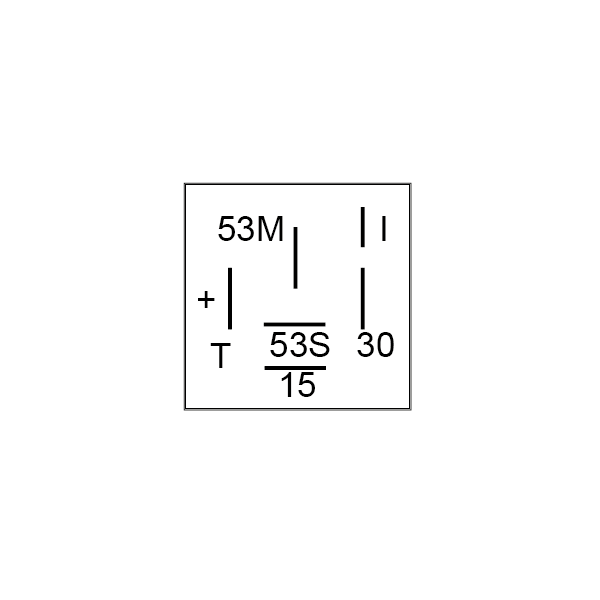

Num Terminals: 6

Contacts Data

Contacts Arrangement: SPDT/Change Over
Max Continuous Current: 5A
Contacts Voltage Drop: ≤ 100mV @ 23°C
Mechanical Lifetime: 1.000.000 cycles
Electrical Lifestime: 200.000 cycles
Contacts Operate Time: ≤ 15ms
Rated Current: 5A
Contacts Gap: ≥ 0,6mm

Protections

Degree Protection: IP 54 DIN40050

Other Data

Storage Temperature: -45°C ± +110°C
Flammability: UL94-HB
Connection: Quick Connected Terminals
Operating Temperature: -30°C ± +70°C
Test Temperature: + 23°C ± 2°C

Materials

Metal Bracket: Steel CK67
Housing: PA 66 GF25
Moving Contact: AgSnO₂
Bobbin Wire: 2 UEW / 155° D. 0,12
Baseplate: PA 6,6 GF25
Fixed Contact: AgSnO₂
Terminals: CuZn37
Terminal Treatment: Sn 5µm
Spring: Stainless Steel 1Cr18Ni9TI
Soft Spring: Stainless Steel 1Cr18Ni9TI

Additional Data

Vibration Test: 5G @ 1 axis
In Conformity with: ISO7588 | DIN46244 | ISO 8092 | IEC 60529 | EU Dir. 2002/95/EC RoHS
Salt Spray Test: 96h
Homologation Number: 10R-02 7025
Company IMDS: 75948
