Relay for PCB – PCB.4117.1U

Home / Mini Relays up to 40A / PCB Relays / Relay for PCB – PCB.4117.1U

Coil Data

Rated Voltage: 12V DC
Num Terminals: 5

Contacts Data

Contacts Arrangement: SPST/Normally Open
Contacts Voltage Drop: ≤ 100mV @ 23°C
Mechanical Lifetime: 1.000.000 cycles
Electrical Lifestime: 100.000 cycles @ 20A 2"ON / 2"OFF
Contacts Operate Time: ≤ 15ms
Operate Time: ≤10ms
Rated Current: 2x20A 28V DC
Minimum Recommended Current: 2x10A 120V AC
Contacts Gap: ≥ 0,6mm


Other Data

Storage Temperature: -45°C ± +110°C
Flammability: UL94-HB
Connection: Terminals for PCB
Operating Temperature: -30°C ± +70°C
Test Temperature: + 23°C


Bobbin Wire: 2 UEW / 155° D. 0,12
Baseplate: PA 6,6 GF25
Fixed Contact: AgSnO₂
Spring: Stainless Steel 1Cr18Ni9TI
Soft Spring: Stainless Steel 1Cr18Ni9TI

Additional Data

Vibration Test: 5G @ 1 axis
Terminals Assignment: ISO 7588 | ISO 8092
In Conformity with: ISO7588 | DIN46244 | ISO 8092 | IEC 60529 | EU Dir. 2002/95/EC RoHS

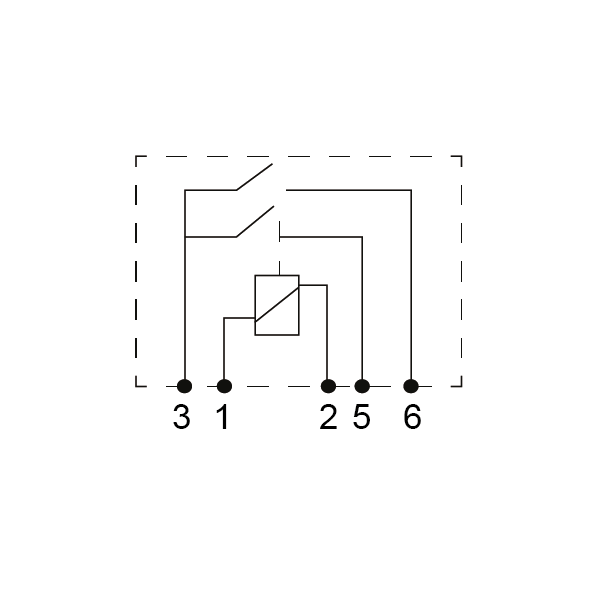

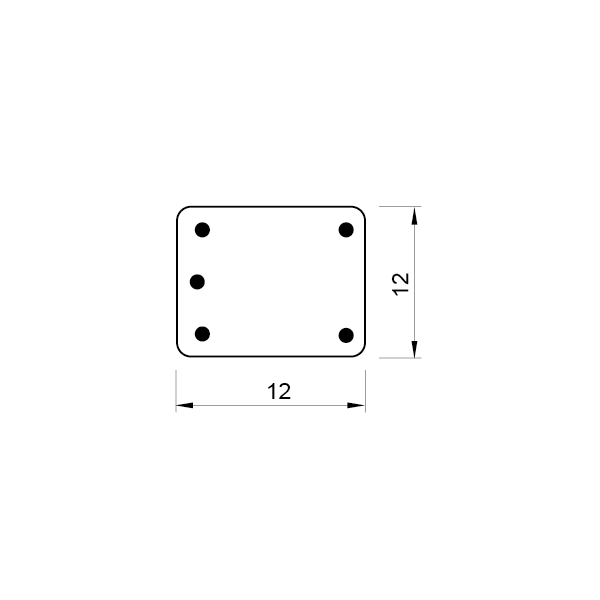

Terminals Assignment Terminal Number Assignmet: ISO 7588 | ISO 8092
Salt Spray Test: 96h
Company IMDS: 75948
